Network Supply Chain HubNet Version

globals [
  clock                     ;; clock denotes the days of simulation
  demand-today              ;; today's demand at both retailers
  colors                    ;; list of colors for plot pens
  stop-signal?              ;; if stop-signal? is true, the program will be stopped
]

breed [players player]


;; there are two types of directed-links in this model
;; one for supply pipeline, one for demand placement
directed-link-breed [supply-links supply-link]

supply-links-own [
  orders-filled          ;; a list standing for the shipping pipeline
  pair-demand-link       ;; the corresponding demand link with the same end nodes
]

directed-link-breed [demand-links demand-link]

demand-links-own [
  orders-placed
  back-orders            ;; back-order for the end1 of the demand link
]



players-own [
  user-id
  role               ;; in this model, role can be "supplier", "distributor" or "retailer"
  number             ;; to distinguish players in the same echelon
  pen-color          ;; their pen-color on the plot

  on-hand            ;; on-hand inventory
  backlog            ;; total back-orders, equal to the sum or back-orders to each of its downstream nodes

  last-received
  finished?          ;; whether order placement is finished
  cost

  demand1            ;; demand from downstream node with number = 1 or 2
  demand2

  last-shipped1      ;; amount shipped to downstream node with number = 1 or 2
  last-shipped2

  order1             ;; order to place to upstream node with number = 1 or 2
  order2

  ordered1           ;; order placed to upstream node with number = 1 or 2
  ordered2
]

;;
;; Startup procedure
;;

to startup
  hubnet-reset
  set-default-shape players "circle"
  set-default-shape links "arc"
end

to recruit

  ;; we will recruit 4 players during this procedure

  while [hubnet-message-waiting?]
  [
    hubnet-fetch-message
    if hubnet-enter-message? [create-player]
    if hubnet-exit-message? [remove-player]
  ]
  every 0.1 [display]
end

to go
  listen-to-clients
  if stop-signal? [stop]         ;; if a stop signal is seen, we stop the program.
                                 ;; this is usually because some players drop offline
  start-shipping
  every 0.1 [display]
end

to listen-to-clients
  while [ hubnet-message-waiting? ]
  [
    hubnet-fetch-message
    ifelse hubnet-enter-message?[                ;; during the game, new commers will be rejected
      hubnet-kick-client hubnet-message-source
    ][
    ifelse hubnet-exit-message?
    [
      remove-player                           ;; if a player drops offline, then there are not enough players
      set stop-signal? true                   ;; to continue the game. we remove this player and send stop signal
      ]
    [execute-command hubnet-message-tag]
    ]

  ]
end

to execute-command [cmd]

  ;; players can control 3 things: 2 order sliders and 1 finish button

  ask players with [user-id = hubnet-message-source][
    if clock <= days-of-simulation [
      if hubnet-message-tag = "orders-to1" [set order1 hubnet-message]
      if hubnet-message-tag = "orders-to2" [set order2 hubnet-message]
      if hubnet-message-tag = "finish" [
        place-order
      ]
    ]
  ]
end

to place-order
  if not finished? [    ;; order can be place for only once in a day
    set finished? true
    set ordered1 order1 ;; in the network supply chain, we can control
    set ordered2 order2 ;; the order quantity to each upstream nodes

    hubnet-send user-id "finished?" finished?

    hubnet-send user-id "ordered1" order1

    ;; distributors only place order to 1 supplier
    ;; so nothing is displayed in "ordered2" for distributors

    if role = "retailer"[
      hubnet-send user-id "ordered2" order2
    ]

  ]
end

to start-shipping
  ;; if all players have finished order placement
  ;; we conclude the day, and start shipping

  ifelse not any? players with [not finished?][
    place-order-to-up
    receive-order-from-up
    process-order-from-down
    summarize
    resize-shape
    set clock clock + 1               ;; proceed the day clock
    set demand-today daily-demand     ;; generate today's demand
    ask players with [role = "retailer" or role = "distributor"][
      set finished? false
      plot-cost
      plot-inventory              ;; plot cost and inventory
    ]
    update-to-clients
    update-order-info             ;; update parameters to the client windows
  ][
  update-order-info
  ]
end

to update-to-clients
  ask players with [role = "distributor" or role = "retailer"][
    hubnet-send user-id "ordered1" ordered1

    if role = "retailer"[    ;; again, distributors don't have "ordered2"
      hubnet-send user-id "ordered2" ordered2
    ]

    hubnet-send user-id "last-received" last-received
    hubnet-send user-id "finished?" finished?
    hubnet-send user-id "day" clock
    hubnet-send user-id "on-hand-inventory" on-hand
    hubnet-send user-id "back-orders" backlog
    hubnet-send user-id "cost" cost
  ]

  ask players with [role  = "distributor"][
    set last-shipped1 [last orders-filled] of one-of my-out-supply-links with [[number] of end2 = 1]
    set last-shipped2 [last orders-filled] of one-of my-out-supply-links with [[number] of end2 = 2]
    hubnet-send user-id "last-shipped1" last-shipped1
    hubnet-send user-id "last-shipped2" last-shipped2
  ]
end

to update-order-info
  ask players with [role = "distributor"][
    set demand1 [orders-placed] of one-of my-in-demand-links with [[number] of end1 = 1]
    set demand2 [orders-placed] of one-of my-in-demand-links with [[number] of end1 = 2]
    hubnet-send user-id "demand1" demand1
    hubnet-send user-id "demand2" demand2
  ]
  ask players with [role = "retailer"][
    set demand1 demand-today
    hubnet-send user-id "demand1" demand1
    hubnet-send user-id "demand2" ""       ;;retailers don't have "demand2"
  ]
end


;;
;; Inventory operations
;;

to place-order-to-up
  ask players with [role = "retailer"][
    let amount-order-to1 ordered1
    let amount-order-to2 ordered2
    foreach sort my-out-demand-links[   ;; set the order quantity to the correpsonding demand link
      ask ?[
        if [number] of end2 = 1 [set orders-placed amount-order-to1]
        if [number] of end2 = 2 [set orders-placed amount-order-to2]
      ]
    ]
  ]

  ask players with [role = "distributor"][
    let amount-order-to-supplier ordered1        ;; distributors are only order from the supplier
    ask one-of my-out-demand-links [set orders-placed amount-order-to-supplier]
  ]
end

to receive-order-from-up
  ask players [
    if role = "distributor" or role = "retailer"[
      set last-received sum [first orders-filled] of my-in-supply-links  ;; pick out the first item in the pipeline
      ask my-in-supply-links [set orders-filled but-first orders-filled] ;; and remove it from the pipeline
      set on-hand on-hand + last-received                                ;; and add it to the inventory
    ]
    if role = "supplier" [set on-hand 10000]                             ;; we assume that the supplier always has sufficient supply
  ]
end

to process-order-from-down
  ask players [

    let new-orders 0
    if role = "distributor" or role = "supplier"[                 ;; demand for suppliers and distributors are equal to
      set new-orders sum [orders-placed] of my-in-demand-links    ;; the sum of orders from downstream nodes
    ]
    if role = "retailer" [
      set new-orders demand-today             ;; demand for retailers is simply today's demand

    ]
    let orders-requested new-orders + backlog    ;; we need to satisfy both new orders and the back-orders
    let orders-to-ship min list orders-requested on-hand  ;; if not enough inventory, ship as many as we have

    set backlog max list 0 (backlog - on-hand + new-orders)  ;; unsatisfied quantity is considered back-order

    let rest-amount orders-to-ship

    foreach sort my-out-supply-links [      ;; since we are shipping to multiple downstream nodes
      ask ? [                               ;; if not enough inventory, we need to allocate the available stock
                                            ;; the quota of each downstream node is proportional to their requested quantity
                                            ;; considering both back-orders and new orders
        let quota sum [back-orders] of pair-demand-link + sum [orders-placed] of pair-demand-link
        let ship-to-this-link 0
        if orders-requested > 0 [
          set ship-to-this-link min list ceiling (quota * orders-to-ship / orders-requested) rest-amount
        ]
        set rest-amount rest-amount - ship-to-this-link
        set orders-filled lput ship-to-this-link orders-filled
        ask pair-demand-link [set back-orders max list 0 (quota - ship-to-this-link)]
      ]
    ]

    set on-hand on-hand - orders-to-ship    ;; reduce the on-hand inventory by the amount shipped
  ]
end

to summarize
  ask players with [role = "distributor" or role = "retailer"][
    let holding-cost on-hand * 0.5
    let back-order-cost backlog * 2
    set cost cost + holding-cost + back-order-cost    ;; summarize the day and calculate the cost
  ]
end

to resize-shape
  ask players with [role = "distributor" or role = "retailer"][
    set size 0.2 * (sqrt on-hand)          ;; visualize the on-hand stock via size of the turtle
  ]
end

to create-player
  ifelse count players with [role != "supplier"] < 4 [   ;; if the number of players is less than 4
    create-players 1 [                                   ;; we can keep recruiting players
      set user-id hubnet-message-source
      set label user-id                                  ;; label the players with their user-id first
      setxy (- max-pxcor + random max-pxcor) (- max-pycor + random max-pycor) ;; randomly place them in the world
    ]
  ][
  hubnet-kick-client hubnet-message-source    ;; if there are enough players, new commers are rejected
  ]
end

to remove-player
  ask players with [user-id = hubnet-message-source][die]
end

to setup
  set stop-signal? false      ;; reset the stop signal so that the program can go on
  layout
  label-players
  initialize
  resize-shape
  reset-plots
end

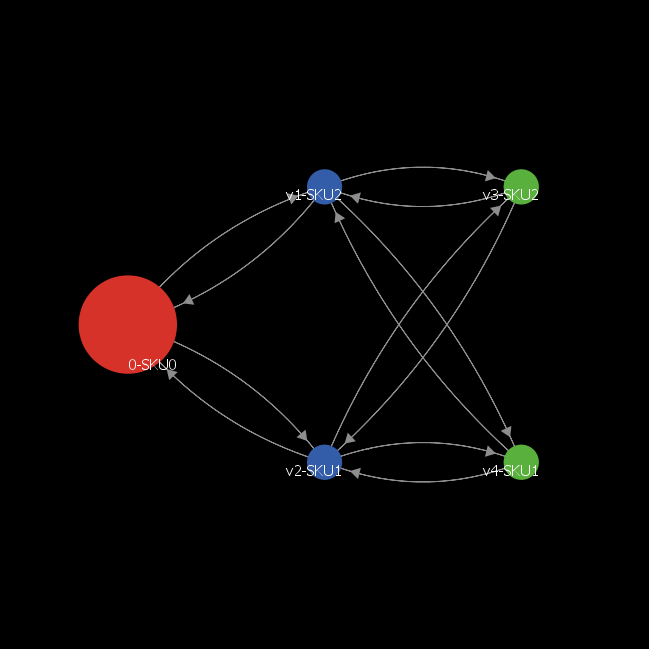

to layout        ;; layout the network supply chain
  ask players with [role != "supplier"] [set role "unassigned"]  ;; reset the roles but not removing the players
  ask links [die]        ;; eliminate all the links

  ask n-of 2 players with [role = "unassigned"][
    set role "distributor"        ;; assign 2 distributors
    set color blue
  ]

  ask n-of 2 players with [role = "unassigned"][
    set role "retailer"           ;; assign 2 retailers
    set color green
  ]

  ask patch -10 0 [
    if not any? players-here[
      sprout-players 1 [          ;; only 1 supply with sufficient supply in the world
        set role "supplier"
        set color red
        set size 5
      ]
    ]
  ]

  ;; create links according to their roles
  ask players with [role = "retailer"] [
    create-demand-links-to players with [role = "distributor"]
    create-supply-links-from players with [role = "distributor"]
  ]
  ask players with [role = "distributor"] [
    create-demand-links-to players with [role = "supplier"]
    create-supply-links-from players with [role = "supplier"]
  ]



  ask supply-links [   ;; define pair demand link, which has the same two ends
    set pair-demand-link demand-links with [end1 = [end2] of myself and end2 = [end1] of myself]
  ]

  ask players with [role = "distributor" or role = "retailer"][
    hubnet-send user-id "role" role   ;; inform players of their roles in the game
  ]
end

to label-players

  let distributors players with [role = "distributor"]
  let num-dist count distributors
  foreach sort distributors [
    ask ? [
      set number num-dist
      set num-dist num-dist - 1       ;; distinguish distributors by giving them different "number"
    ]
  ]

  let retailers players with [role = "retailer"]
  let num-ret count retailers
  foreach sort retailers [
    ask ? [
      set number num-ret
      set num-ret num-ret - 1        ;; distinguish retailers by giving them different "number"
    ]
  ]

  ask players [
    set label word user-id "-SKU"    ;; relabel the players with their "user-id" and "number"
    set label word label number
  ]

  ask players with [role = "distributor"][
    setxy 0 (-7 + (number - 1) * 14)
  ]
                                             ;; set distributors in the middle, retailers on the right
  ask players with [role = "retailer"][
    setxy 10 (-7 + (number - 1) * 14)
  ]


  set colors [red blue green yellow]
  let index 0
  foreach sort players with [role = "distributor" or role = "retailer"][
    ask ? [
      set pen-color item index colors      ;; assign differnt pen-colors to players
      set index index + 1
    ]
  ]
end

to initialize
  set clock 0    ;; reset day clock
  set demand-today daily-demand      ;; generate today's demand
  ask players [

    set on-hand 100
    set backlog 0

    set last-received 0

    set finished? false
    if role = "supplier" [set finished? true]

    set cost 0


    set last-shipped1 0
    set last-shipped2 0

    set order1 10
    set order2 10

    set ordered1 0
    set ordered2 0

    if role = "distributor"[   ;; distributors order from only 1 supplier
      set order2 ""            ;; thus no "ordered2"
      set ordered2 ""
      hubnet-send user-id "ordered2" ordered2
    ]

    if role = "retailer" [                   ;; retailers face only 1 external demand
      hubnet-send user-id "demand2" ""       ;; thus no "demand2"
      hubnet-send user-id "last-shipped2" ""
    ]


  ]
  ask supply-links [
    set orders-filled n-values lead-time [0]   ;; supply pipeline as list with "lead-time" elements
  ]
  ask demand-links [
    set orders-placed 0
    set back-orders 0
  ]


  update-to-clients
  update-order-info
end

to-report daily-demand
  report random-poisson mean-for-poisson    ;; we use poisson distribution for the demand
end


;;
;; plot procedure
;;

to create-plot-pen [my-plot]
  set-current-plot my-plot
  create-temporary-plot-pen user-id   ;; name plot pens according to their user-id
  set-plot-pen-color pen-color        ;; set pen-color
end

to plot-cost
  set-current-plot "Total-cost"
  set-current-plot-pen user-id
  plot cost
end

to plot-inventory
  set-current-plot "On-hand-stock"
  set-current-plot-pen user-id
  plot on-hand
end

to reset-plots
  clear-all-plots
  ask players with [role = "distributor" or role = "retailer"][
    create-plot-pen "Total-cost"
    create-plot-pen "On-hand-stock"
  ]
end
