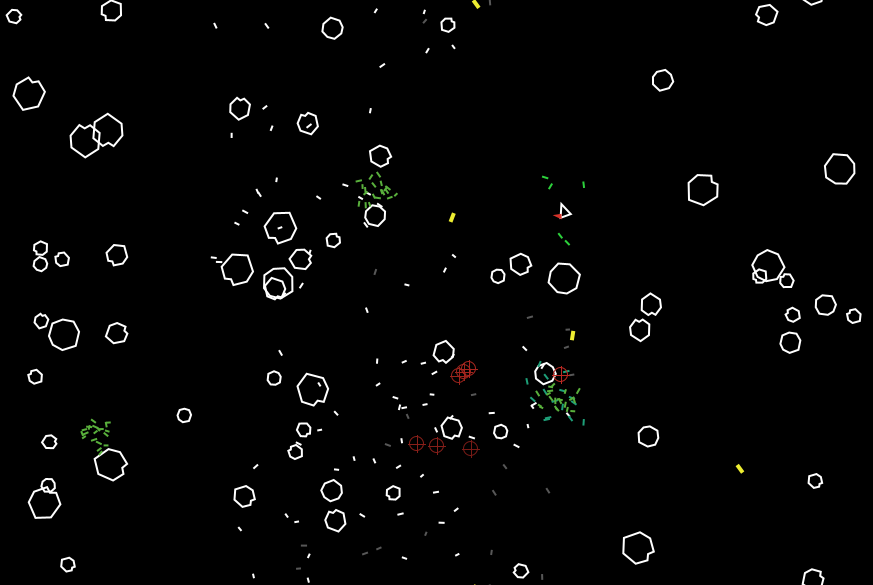

Rubble Trouble!

; extensions [ sound ]

globals
[
  pixel
  keypress
  the-ship
  the-reticule
  click
  num-rocks
  active-reticule
  score
  credits
  reset-pressed
  rock-color
  setup-finished
  rock-info
]

patches-own
[ rr gg bb
]

breed [ rocks rock ]
breed [ ships ship ]
breed [ bullets bullet ]
breed [ fragments fragment ]
breed [ messengers messenger ]
breed [ reticules reticule ]
breed [ letters letter ]
breed [ clocks clock ]
breed [ HS-effects hs-effect ]

clocks-own
[ current-time
  elapsed-time
  start-time
  cumulative-time
  pause-until
  clock-on
]

letters-own
[ base-size
  base-color
  base-xcor
  base-heading
]

reticules-own
[
  timeout
]

hs-effects-own
[ effect-direction ]

ships-own
[
  vx vy vv
  ax ay av
  gun-temp
  gun-limit
  gun-cooldown
  max-temp
  bullet-speed;
  bullet-burnout
  max-burnout
]

rocks-own
[
  rock-type
  vx vy vv
  av
  exploding
]

bullets-own
[
  vx vy vv
  bullet-burnout
  bullet-speed
  max-burnout
  seeker?
  target-rock
]

fragments-own
[ vv vx vy av burnout max-burnout kind ]

messengers-own
[
  text ;; the message to ;display
  caret ;; position within the text
  cursor ;; patch offset of the caret
  window ;; the set of patches under the message
  window# ;; the line on which to ;display the message
  show-cursor? ;; show the simulated blinking curtor
]

to ? [ thing ]
  (
    ifelse
    ( is-list? thing )
    [
      output-print " [ "
      foreach thing [ ?? -> ? ?? ] output-print " ] "
    ]
    [
      output-print thing
    ]
  )
end

to-report plus-or-minus [ value ]
  report value * ( random 2 * 2 - 1 )
end

to x_set-line-thickness [ width ]
  ;; __set-line-thickness width
end

to setup-rock
  let rock-start-size 1.5 ^ 5
  let rock-start-av .1 + random-float 0.75
  let rock-start-v .1 + random-float .1
  set rock-info
  [
    [ "rock-1" 0 1 22 ]
    [ "rock-2" 0 1 22 ]
    [ "rock-3" 0 1 22 ]
    [ "rock-4" 0 1 22 ]
    [ "rock-5" 1 2 12 ]
  ]

  create-rocks 1
  [
    home
    x_set-line-thickness pixel * 2
    let side plus-or-minus 1
    let startx side * ( max-pxcor - random ( world-width / 4 ) )
    let starty random-ycor
    setxy startx starty
    let endx side * ( max-pxcor - random ( world-width / 4 ) )
    set heading towardsxy endx plus-or-minus max-pycor
    set vx dx * rock-start-v
    set vy dy * rock-start-v
    set av rock-start-av
    set color white
    set rock-type item ( roulette rock-info 3 ) rock-info
    set shape item 0 rock-type
    set size rock-start-size / item 2 rock-type
  ]
end

to-report roulette [ $layout $bias-index ]
  ;; the layout are the values being selected from
  ;; the canoes are widths of each pocket the tendency of each value to be selected
  let canoes map [ $bias -> item $bias-index $bias ] $layout
  let total sum canoes
  let fall random-float total
  let pocket 0
  ;; intial value of canoe = inside the first pocket
  let canoe item pocket canoes
  while [ fall > canoe ]
  [ set pocket pocket + 1
    set canoe canoe + item pocket canoes
  ]
  report pocket
end

to rock-explode
  ;; sound:play-note-later delay instrument keynumber velocity duration
  sfx "explode-rock" size

  set heading atan vx vy
  set vv sqrt ( vx * vx + vy * vy )
  if ( size > 4 )
  [
    set size size * 2 / 3
    if vv < .9 [ set vv vv * 1.1 ]

    let a -1
    repeat (1 + random 2)
    [
      hatch 1
      [
        rt 90 * a
        set a a + 2
        set vx dx * vv
        set vy dy * vv
        jump size / 2
        set shape one-of [ "rock-1" "rock-2" "rock-2" ]
        x_set-line-thickness pixel * 2
      ]
    ]
  ]
  fragment-setup white 0 size
  die
end

to fragment-setup [ hue direction radius ]
  let xx xcor
  let yy ycor
  let $extra max list 0 (count fragments - 100)
  ask n-of $extra fragments [ die ]
  hatch-fragments ifelse-value ( direction = 0 ) [ 5 ] [ 1 ]
  [ set color hue
    set heading random 360
    x_set-line-thickness pixel * 2
    set vv .1 + random-float .2
    set vx dx * vv
    set vy dy * vv
    set max-burnout 40
    ifelse direction != 0
    [ jump 2
      rt 180
      set size 2
      set av 0
    ]
    [
      jump ( .5 * random-float radius )
      rt 90
      set size ( size + random-float 2 )
      set av 20 * ( random 2 * 2 - 1 )
    ]
  ]
end

to game-clear
  ;; setup a game
  clear-drawing
  clear-patches
  clear-turtles
  clear-links
  set num-rocks 0
end

to ship-setup
  create-ships 1
  [ set color magenta + 2
    set heading 0
    set shape "_ship-000"
    x_set-line-thickness pixel * 2
    set size 2
    set bullet-speed 1
    set bullet-burnout max-pxcor / bullet-speed
    set max-burnout bullet-burnout
    set gun-limit 5
    set gun-temp 0
    set max-temp 4 / bullet-speed
    ;; floor ( 30 / 2 / pixel )
    set the-ship self
  ]
  inspect the-ship
end

to reticule-setup
  ask patch min-pxcor min-pycor
  [ sprout-reticules 1
    [ hide-turtle
      setxy max-pxcor max-pycor
      set heading 0
      set shape "reticule"
      set color red
      x_set-line-thickness pixel * 3
      set size 2
      set active-reticule self
      set timeout 0
    ]
  ]
end

to reticules-go
  if self != active-reticule
  [ if timeout = 0 [ set timeout timer + 2 ]
    ifelse timer < timeout
    [ set color scale-color red ( timeout - timer ) -3 8 ]
    [ die ]
  ]
end

to ship-explode
  sfx "ship-explode" 0
  die
end

to-report ship-fire
  ;; SETUP-bullet
  let fire! false
  ask the-ship
  [
    if gun-temp <= 0 and count bullets < gun-limit
    [
      sfx "pew" 0
      hatch-bullets 1
      [
        x_set-line-thickness pixel * 4
        set size max list .5 ( pixel * 3 )
        set color white
        set vx dx * ( bullet-speed )
        set vy dy * ( bullet-speed )
        jump .5
        set fire! true
        set seeker? false
        let vary random 100
        ( ifelse
          ( vary > 90 )
          ;; hunter missle
          [
            set seeker? true
            set size .5
            set shape "missle"
            set target-rock one-of rocks
            set color yellow
            set bullet-burnout 200
          ]
          ( vary > 80 )
          ;; triple shot
          [ hatch 1 [ rt 90 jump .5 lt 90 ]
            hatch 1 [ lt 90 jump .5 rt 90 ]
          ]
          ( vary > 70 )
          ;; to left, right, and center
          [ hatch 1 [ rt 90 ]
            hatch 1 [ lt 90 ]
          ]
          ( vary > 60 )
          ;; four-way shot
          [ hatch 1 [ rt 90 ]
            hatch 1 [ lt 90 ]
            hatch 1 [ rt 180 jump 1 ]
          ]
          ( vary > 55 )
          ;; circle of pebbles
          [ let a heading
            setxy [ xcor ] of myself [ ycor ] of myself
            repeat ( 360 / 5 )
            [ hatch 1 [ rt a jump .5 ]
              set a a + 5
            ] jump .5
          ]
          ;; no specialization
          [ ]
        )
      ]
      set gun-temp max-temp
    ]
  ]
  report fire!
end

to rock-go

  ;  if count rocks < 5 and any? ships
  ;  [
  ;    let hh towards one-of ships
  ;    set vx .5 * sin hh
  ;    set vy .5 * cos hh
  ;  ]
  set vv ( vx * vx + vy * vy )
  ifelse ( vv > 1 )
  [
    rock-explode
  ]
  [
    let trail-color red + 10 * int min list 120 ( 10 * size )
    setxy ( xcor + vx ) ( ycor + vy )
    rt av
    ask patches in-radius (round (.3 * size)) [set pcolor trail-color ]
    set color rock-color
    if ( any? ships in-radius ( size / 2 + .5 ) )
    [
      ask ships [ ship-explode ]
    ]
    if ( true )
    [ let close min-one-of ( other rocks ) [ distance myself ]
      let overlap -1 * boundary-distance close
      if
      ( overlap > 2 * pixel )
      [
        if ( overlap > 4 * pixel )
        [ ;; too close! force them away
          face close rt 180 jump overlap / 2
          ask close [ face myself rt 180 jump overlap / 2 ]
        ]
        collide-with close
      ]
    ]
  ]
end

to collide-with [ other-particle ] ;; particle procedure
  let recovery .99
  ;;; PHASE 1: initial setup

  ;; for convenience, grab some quantities from other-particle

  let h ifelse-value ( vx != 0 or vy != 0 ) [ atan vx vy ] [ 0 ]
  let mass size ^ 3
  let speed sqrt ( vx * vx + vy * vy )
  let mass2 [ size ^ 3 ] of other-particle
  let speed2 [ sqrt ( vx * vx + vy * vy ) ] of other-particle
  let h2 [ ifelse-value ( vx != 0 or vy != 0 ) [ atan vx vy ] [ 0 ] ] of other-particle

  ;;modified so that theta is heading toward other particle
  let theta towards other-particle

  ;;; PHASE 2: convert velocities to theta-based vector representation

  ;; now convert my velocity from speed/heading representation to components
  ;; along theta and perpendicular to theta
  let v1t ( speed * cos ( theta - h ) )
  let v1l ( speed * sin ( theta - h ) )

  ;; do the same for other-particle
  let v2t ( speed2 * cos ( theta - h2 ) )
  let v2l ( speed2 * sin ( theta - h2 ) )

  ;;; PHASE 3: manipulate vectors to implement collision

  ;; compute the velocity of the system's center of mass along theta
  let vcm ( ( ( mass * v1t ) + ( mass2 * v2t ) ) / ( mass + mass2 ) )

  ;; now compute the new velocity for each particle along direction theta.
  ;; velocity perpendicular to theta is unaffected by a collision along theta,
  ;; so the next two lines actually implement the collision itself, in the
  ;; sense that the effects of the collision are exactly the following changes
  ;; in particle velocity.
  set v1t ( 2 * vcm - v1t )
  set v2t ( 2 * vcm - v2t )

  let d distance other-particle - ( size + [ size ] of other-particle ) / 2
  ;;; PHASE 4: convert back to normal speed/heading

  ;; now convert my velocity vector into my new speed and heading
  set speed recovery * sqrt ( ( v1t * v1t ) + ( v1l * v1l ) )
  ;; if the magnitude of the velocity vector is 0, atan is undefined. but
  ;; speed will be 0, so heading is irrelevant anyway. therefore, in that
  ;; case we'll just leave it unmodified.
  if v1l != 0 or v1t != 0
  [ let new-h ( theta - ( atan v1l v1t ) )
    set vx sin new-h * speed
    set vy cos new-h * speed
    setxy xcor + vx ycor + vy
  ]

  ;; and do the same for other-particle
  set speed2 recovery * sqrt ( ( v2t ^ 2 ) + ( v2l ^ 2 ) )
  if v2l != 0 or v2t != 0
  [ let new-h ( theta - ( atan v2l v2t ) )
    ask other-particle [
      set vx sin new-h * speed2
      set vy cos new-h * speed2
      setxy xcor + vx ycor + vy
    ]
  ]
end

to fragment-go
  setxy xcor + vx ycor + vy
  rt av
  if random 10 = 1
  [
    set av av * 2
    set size size / 2
    set burnout burnout * 1.5
    rt 90
    hatch 1 [ rt 180 ]
  ]
  set max-burnout max-burnout - 1

  ifelse max-burnout > 0
  [ if max-burnout < 10
    [ set color max-burnout ]
  ]
  [ die ]
end

to-report boundary-distance [ obj ]
  if not is-turtle? obj [ report world-width ]
  report ( distance obj - ( size / 2 ) - [ size / 2 ] of obj )
end

to ship-go
  set xcor xcor + vx
  set ycor ycor + vy
  ;; ask patches in-radius size [ set pcolor 9.9 ]
  if gun-temp > 0
  [ set gun-temp gun-temp - 1 ]
  let crowd rocks in-radius 20
  if any? crowd
  [ let close min-one-of crowd [ boundary-distance myself ]
    let dc abs boundary-distance close
    if dc <= 2 and dc >= 1
    [ fragment-setup turquoise 1 1 ]
    if ( dc < .5 ) [ ship-teleport ]
  ]
end

to bullet-go
  if seeker? and is-rock? target-rock
  [ lt .05 * subtract-headings heading towards target-rock ]
  jump bullet-speed
  let hits rocks with [ distance myself < size / 2 ]
  if any? hits [
    ask hits [ rock-explode ]
    set bullet-burnout -1

  ]
  set bullet-burnout bullet-burnout - 1
  if bullet-burnout <= 0 [ die ]
end

to ship-spin-ws
  ask the-ship [ set shape "_ship-001" lt 15 ]
end

to ship-spin-cw
  ask the-ship [ set shape "_ship-100" rt 15 ]
end

to ship-thrust
  ask the-ship
  [
    ;; get components of thrust vector
    let am pixel / 2
    set ax am * sin heading
    set ay am * cos heading

    ;; add to current velocity vector components
    let nvx vx + ax
    let nvy vy + ay

    ;; calculate new velocity magnitude
    let maxvm 1.00
    let nvm sqrt ( nvx * nvx + nvy * nvy )
    let svm ifelse-value ( nvm <= maxvm ) [ 1 ] [ nvm / maxvm ]

    set vx nvx / svm
    set vy nvy / svm

    ;; output-print " xcor ycor heading ax ay am vx vy vm"
    ;; foreach ( list xcor ycor heading ax ay am vx vy vm ) [ n -> output-type fixed n output-type " " ] output-print ""
    set shape "_ship-010"
  ]
end

to-report fixed [ n ]
  let m ifelse-value n < 0 [ "-" ] [ " " ]

  let ns ( word " " ( int n ) "." int ( 100 * ( ( abs n ) - ( abs int n ) ) ) "0" )
  set ns reverse substring reverse ns 0 7
  report ns
end

to ship-nothing
  ask the-ship
  [ set shape "_ship-000" ]
end

to message-go
  ;; draw character, if appropriate
  ;; at end of message, die
  let font-size 36
  let pix 1 / patch-size
  let char-width ceiling (font-size / patch-size / 1.5)
  let char-height font-size / patch-size * 2
  ifelse ( caret >= length text )
  [ die ]
  [
    let new-x pxcor
    if ( pxcor >= cursor )
    [
      let c item caret text
      if c = "W" or c = "m" or c = "M"
      [
        set new-x new-x + 1
        if new-x > max-pxcor - 1 [ set new-x min-pxcor ]
        set xcor new-x
        set cursor new-x
      ]
      if c = "i" or c = "l"
      [ set new-x new-x - 1
        set xcor new-x
        set cursor new-x
      ]
      set plabel c
      set caret caret + 1
      set cursor cursor + char-width
    ]
    ;; advance cursor
    set new-x new-x + 1
    if new-x > max-pxcor - 1 [ set new-x min-pxcor ]
    set xcor new-x
  ]
end

to message-setup [ $window# $text ]
  let this nobody
  let font-size 36
  let pix 1 / patch-size
  let char-width ceiling (font-size / patch-size / 1.5)
  let line-height ceiling(font-size / patch-size * 1.4)
  ;; get or create the indicated message line
  ifelse ( any? messengers with [ window# = $window# ] )
  [ ;; use existing messenger
    set this one-of messengers with [ window# = $window# ]
  ]
  [ ;; make a new messenger
    ;; since we can't be sure what is making the message,
    ;; ask a patch to do it, so we can use SPROUT with certainty.
    ask patch min-pxcor min-pycor
    [ sprout-messengers 1
      [ set this self ]
    ]
  ]
  ;; now work with the messenger
  ask this
  [
    set shape "cursor"
    set size 8
    set color black
    set text $text
    set window# $window#
    set show-cursor? false
    setxy ( min-pxcor + ceiling (char-width / 2) ) ( max-pycor - line-height * window# )
    let min-py pycor - ( line-height / 2 ) + 1
    let max-py pycor + ( line-height / 2 ) - 1
    set window patches with [ pycor >= min-py and pycor <= max-py ]
    ask window [ set plabel "" set pcolor white set plabel-color black ]
    set caret 0
    set cursor pxcor
    set hidden? true ;; not show-cursor?
  ]
end

to write-message
  let expiration timer + 10
  while [ any? messengers and timer < expiration ]
  [ repeat 5 [ ask messengers
    [ message-go
    ]]
    tick
  ]
  ask messengers [ die ]
end

to mouse-mode
  if ( mouse-inside? )
  [
    let diff [ -1 * subtract-headings towardsxy mouse-xcor mouse-ycor heading ] of the-ship
    let turn 0
    (
      ifelse
      ( diff > 0 )
      [ set turn 1 ]
      ( diff < 0 )
      [ set turn -1 ]
      ;; otherwise
      [ set turn 0 ]
    )
    ask the-ship [ lt diff / 2 ]
  ]
  ifelse ( mouse-down? )
  [ ifelse click = 0
    [ let void ship-fire
      set click 1
    ]
    [ ship-thrust

    ]
  ] [ set click 0 ]
end

to auto-pilot
  ask the-ship
  [ let diff 0
    let close rocks in-radius 20
    ifelse ( any? close )
    [
      set close min-one-of close [ distance myself ]
      ;if ( not member? close link-neighbors )
      ; [ ask my-links [ die ]
      ; create-link-with close
      ; ]
      let dd [ distance myself ] of close
      let rockspeed [ sqrt ( vx * vx + vy * vy ) ] of close
      let bullspeed bullet-speed
      let bx dx * bullspeed
      let by dy * bullspeed
      let frx [ xcor + vx * dd / bullspeed ] of close
      let fry [ ycor + vy * dd / bullspeed ] of close
      let frh towardsxy frx fry
      let fdist distancexy frx fry

      let fhdiff subtract-headings frh heading
      ;; let dist boundary-distance close

      ifelse ( abs fhdiff > 2 )
      [
        ifelse ( fhdiff < 0 )
        [ lt 5 ]
        [ rt 5 ]
      ]
      [
        ifelse ( fdist > 2 * ( bullet-speed * bullet-burnout ) )
        [ ship-thrust ]
        [
          if ship-fire
          [ if not any? reticules
            [ reticule-setup
            ]
            ask active-reticule
            [ set timeout timer + 2
              setxy frx fry
              show-turtle
              ; create-link-with close
              ; [ set thickness 2 * pixel
              ; set color violet
              ; ]

              hatch 1
              [ hide-turtle
                set active-reticule self
                set timeout 0
              ]
            ]
          ]
        ]
      ]
    ]
    [ let rnd random 100
      ( ifelse
        ( rnd < 5 ) [ ship-spin-ws ]
        ( rnd >= 40 and rnd < 55 ) [ ship-thrust ]
        ( rnd >= 90 and rnd < 95 ) [ ship-spin-cw ]
        [ let void ship-fire ]
      )
    ]
  ]
end

to GET-input
  if ( any? ships )
  [ ship-nothing
    ifelse ( full-auto? )
    [
      auto-pilot

    ]
    [
      if ( mouse-mode? )
      [
        mouse-mode
      ]
      ( ifelse
        ( keypress = "fire" ) [ let void ship-fire ]
        ( keypress = "ws" ) [ ship-spin-ws ]
        ( keypress = "cw" ) [ ship-spin-cw ]
        ( keypress = "t" ) [ ship-thrust ]
        [ ship-nothing ]
      )
      set keypress ""
    ]
  ]
end

to shapes-setup
  set-default-shape ships "_ship-000"
  set-default-shape rocks "rock-1"
  set-default-shape bullets "bullet"
  set-default-shape fragments "fragment"
  set-default-shape messengers "cursor"
end

to startup
  clear-all
  reset-ticks
  message-setup 1 "Please press RUN"
  write-message
  tick
end

to globals-setup
  set pixel 1 / patch-size
  set active-reticule nobody
end

to rocks-setup
  if num-rocks = false or num-rocks < 5 [ set num-rocks 5 ]
  repeat num-rocks [ setup-rock ]
  let retry-limit 50
  let too-many-rocks true
  while [ too-many-rocks and retry-limit > 0 ]
  [
    set too-many-rocks false
    ASK ROCKS
    [ LET too-close OTHER ROCKS IN-RADIUS (SIZE * 2)
      LET is-too-close? ANY? too-close
      SET too-many-rocks too-many-rocks OR is-too-close?
      IF is-too-close?
      [
        RT RANDOM 360
        JUMP 1
      ]

      SET retry-limit retry-limit - 1
    ]
  ]
end

to ship-teleport
  let max-jumps 100
  let crowd rocks in-radius 20
  hatch-HS-effects 1
  [ set size 3
    set color violet
    set effect-direction 1
    set shape "circle"
  ]
  while
  [
    max-jumps > 0
    and
    any? crowd with [ boundary-distance myself < 2 ]
  ]
  [
    fragment-setup green 0 1
    setxy random-xcor random-ycor
    set vx 0
    set vy 0
    set crowd rocks in-radius 10
    set max-jumps max-jumps - 1
    ;display
  ]
  hatch-HS-effects 1
  [ set color red
    set size 20
    set effect-direction -1
    set shape "circle"
  ]
  fragment-setup lime 1 2
end

to clock-setup
  create-clocks 1
  [ set shape "clock"
    set start-time 0
    set current-time 0
    set elapsed-time 0
    set cumulative-time 0
    set pause-until 0
    set clock-on false
    set size 3
    setxy 0 max-pycor - size / 2 - pixel
  ]
end

to game-setup
  set score 0
  globals-setup
  shapes-setup
  game-clear
  rocks-setup
  logo-display
  directions-display
  write-message
  clock-setup
  stop-inspecting-dead-agents
  set setup-finished true
  reset-ticks
end

to new-game
  set score 0
  game-clear
  rocks-setup
  ship-setup
  set setup-finished true
end

to directions-display
  message-setup 5 "THE MISSION:"
  write-message
  message-setup 6 "DESTROY RUBBLE."
  write-message
  message-setup 7 "-PRESS START-"
end

to game-go
  ifelse ( setup-finished = 0 ) [ game-setup ]
  [ get-input
    ask ships [ ship-go ]
    ask bullets [ bullet-go ]
    set rock-color white
    ;; ifelse-value ( random 100 < 10 ) [ 1 + random-float 1 + 2.9 * random 2 ] [ white ]
    ask rocks [ rock-go ]
    ask fragments [ fragment-go ]
    ask messengers [ message-go ]
    ask reticules [ reticules-go ]
    ask HS-effects
    [
      ifelse ( size < 3 or size > 20 )
      [ die ]
      [ set size size + effect-direction ]
    ]
    ;; ask aliens [ GO-alien ]
    ;; if ( not ( any? ships or any? messengers ) ) [ messenger-setup 1 "PRESS PLAY" ]
    if ( not ( any? rocks ) )
    [ set num-rocks num-rocks * 1.25 rocks-setup
      ask ships [ home set vx 0 set vy 0 ]
    ]
    ask patches
    [ let hue ifelse-value (is-list? pcolor) [pcolor ][ extract-rgb pcolor ]
      set rr item 0 hue ^ 2 * .95
      set gg item 1 hue ^ 2 * .95
      set bb item 2 hue ^ 2 * .95
    ]
    diffuse rr .2
    diffuse gg .2
    diffuse bb .2
    ask patches
    [ set pcolor rgb sqrt rr sqrt gg sqrt bb
    ]
  ]
  tick
end

to logo-display
  clear-patches
  ask letters [ die ]
  tick
  ;; ask patches with [ ( pxcor + pycor ) mod 2 = 0 ] [ set pcolor ( 2.5 + black ) ]
  let logo0 "RUBBLE"
  let logo1 "TROUBLE"
  logo-animate logo0 0
  logo-animate logo1 1
  ;display
end

to logo-animate [ logo line ]
  let len length logo
  let letter-size ( world-width ) / ( len )
  let start-x min-pxcor + ( world-width - 1 ) / 2 - ( ( len * letter-size ) / 2 ) + .5 * letter-size
  let line-height 1.5
  let these-letters no-turtles
  foreach range len
  [
    [ t ] ->
    create-letters 1
    [
      let c item t logo
      let pos-x letter-size * t
      setxy ( start-x + pos-x ) max-pxcor - letter-size * line * line-height
      if ( c = " " ) [ set c "space" ]
      set shape word "logo-" c
      set size letter-size
      set color base-color
      set heading 0
      set base-xcor xcor
      set base-size size
      set base-color white
      set color base-color
      set base-heading heading
      setxy 0 min-pycor
      set size 0
      set these-letters ( turtle-set these-letters self )
    ]
  ]
  let top-y ( world-height - 1 ) - ( .5 * letter-size ) - line * letter-size * line-height
  (
    foreach ( range 0 1.0 ( 2 / 30 ) )
    [
      [ ratio ] ->
      let y min-pycor + top-y * ratio
      let m2 ratio * letter-size
      ask these-letters
      [
        set size m2
        set ycor y
        set xcor base-xcor * ratio
      ]
      tick
      wait 1 / 30
    ]
  )
  set pixel 1 / patch-size
  let thick PIXEL * 16
  let lcolor lime - 3.5
  ask letters
  [ let mythick thick
    LET MYCOLOR LCOLOR
    repeat 4
    [ hatch 1
      [ set color MYCOLOR
        x_set-line-thickness mythick
        set mythick mythick / 2
        SET MYCOLOR MYCOLOR + 2
      ]
    ]
    DIE
  ]
  ;
end

to play-note [ $inst $key $vel $dur ]
  ;; sound:play-note $inst $key $vel $dur
end

to play-note-later [ $delay $inst $key $vel $dur ]
  ;; sound:play-note-later $delay $inst $key $vel $dur
end

to play-drum [ $inst $vel ]
  ;; sound:play-drum $inst $vel
end

to stop-music
  ;; sound:stop-music
end

to sfx [ fx option ]

  (
    ifelse
    ( fx = "explode-rock" )
    [
      play-drum "CRASH CYMBAL 2" 12
      play-note-later .10 "timpani" ( 45 - option * 4 ) 64 + option .3
      play-note "timpani"
      ( 42 - option * 2 ) 64 + option .1
    ]
    ( fx = "ship-explode" )
    [
      play-drum "CRASH CYMBAL 2" 127
      play-note-later .20 "timpani" 42 100 .1
      play-note-later .10 "timpani" 42 100 .1
      play-note "timpani" 40 64 .1
    ]
    ( fx = "pew" )
    [
      let fxarppegio-steps 5
      let fxkeys map [ r -> 42 - r * 3 ] ( range fxarppegio-steps )
      let fxvelocity 48
      let fxduration .02 * fxarppegio-steps
      let fxdelay-step fxduration / fxarppegio-steps
      foreach ( range fxarppegio-steps )
      [ [ i ] ->
        play-note-later ( i * fxdelay-step ) "SYNTH BRASS 1" ( item i fxkeys ) fxvelocity fxdelay-step
      ]
    ]
    [
      stop-music
    ]
  )
end

;; The following code was publsihed by and released to the Public Domain by Uri Wilensky,
;; and was obtained from the NetLogo v 6.3 Model Library.
;; note that the 6.2.2 version used TAN 90, which is mathematically undefined, but
;; netlogo used to incorrectly report as a value

;; reports a two-item list of x and y coordinates, or an empty
;; list if no intersection is found

to-report intersection [ t1 t2 ]
  let is-t1-vertical? ( [ heading ] of t1 = 0 or [ heading ] of t1 = 180 )
  let is-t2-vertical? ( [ heading ] of t2 = 0 or [ heading ] of t2 = 180 )

  ;; is t1 vertical? if so, swap the two turtles, and run again.
  ;; ( unless both are vertical, i.e. they are parallel--report an empty list )
  ifelse ( is-t1-vertical? )
  [
    ifelse ( is-t2-vertical? )
    [ report [ ]
    ]
    [ report intersection t2 t1
    ]
    ;; report ends the procedure immediately
  ]
  [
    let m1 [ tan ( 90 - heading ) ] of t1

    ;; is t2 vertical? if so, handle specially
    ifelse ( is-t2-vertical? )
    [
      ;; represent t1 line in slope-intercept form ( y=mx+c )
      let c1 [ ycor - xcor * m1 ] of t1
      ;; t2 is vertical so we know x already
      let x [ xcor ] of t2
      ;; solve for y
      let y m1 * x + c1
      ;; check if intersection point lies on both segments
      ifelse [ not x-within? x ] of t1 or [ not y-within? y ] of t2
      [
        report [ ]
      ]
      [
        report list x y
      ]
    ]
    [
      let m2 [ tan ( 90 - heading ) ] of t2

      ;; treat parallel/collinear lines as non-intersecting
      ifelse m1 = m2
      [
        report [ ]
      ]
      [

        ;; now handle the normal case where neither turtle is vertical;
        ;; start by representing lines in slope-intercept form ( y=mx+c )
        let c1 [ ycor - xcor * m1 ] of t1
        let c2 [ ycor - xcor * m2 ] of t2
        ;; now solve for x
        let x ( c2 - c1 ) / ( m1 - m2 )
        ;; check if intersection point lies on both segments
        ifelse [ not x-within? x ] of t1 or [ not x-within? x ] of t2
        [
          report [ ]
        ]
        [
          report list x ( m1 * x + c1 ) ]
      ]
    ]
  ]
end

to-report x-within? [ x ] ;; turtle procedure
  report abs ( xcor - x ) <= abs ( size / 2 * dx )
end

to-report y-within? [ y ] ;; turtle procedure
  report abs ( ycor - y ) <= abs ( size / 2 * dy )
end

;; below only for when generating a new thumbnail image for the commons
;to setup
; clear-all
; startup
; new-game
; set num-rocks 15
; rocks-setup
;end
;to go
; repeat 15 [ game-go wait 1 / 30 ]
;end
