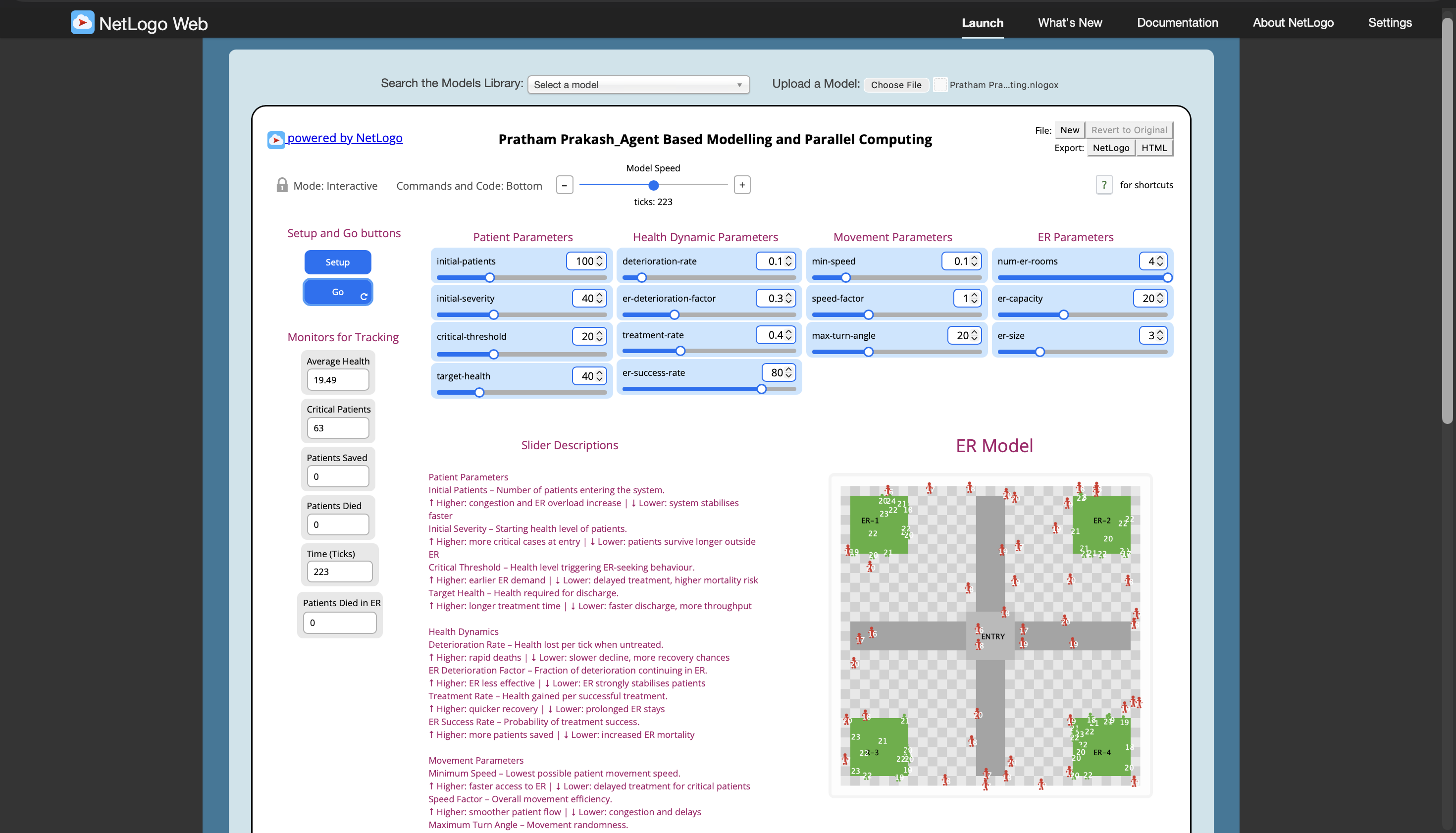

An Agent-Based Model of Emergency Department Dynamics Under Capacity Constraints

;; ==========================================
;; ER Treatment Model
;; ==========================================

breed [patients patient]

globals [
  patients-saved
  patients-died
  patients-died-in-er
  er-room-loads
  empty-tick
  treatment-interval
  er-overload-risk
]

patients-own [
  health
  speed
  being-treated?
]

patches-own [
  er-id
]

;; ---------------- SETUP ----------------

to setup
  clear-all
  set patients-saved 0
  set patients-died 0
  set patients-died-in-er 0
  set empty-tick -1

  ;; NEW parameters
  set treatment-interval 3
  set er-overload-risk 10

  setup-boundary
  setup-corridors
  setup-entrance
  setup-er-rooms
  label-hospital-zones
  setup-patients

  reset-ticks
end

;; ---------------- ENVIRONMENT ----------------

to setup-boundary
  ask patches [
    if pxcor = max-pxcor or pxcor = min-pxcor or
       pycor = max-pycor or pycor = min-pycor [
      set pcolor white
    ]
    if pcolor != white [
      ifelse (pxcor + pycor) mod 2 = 0
      [ set pcolor 9 ]
      [ set pcolor 8 ]
    ]
  ]
end

to setup-entrance
  ask patches with [
    pxcor > -3 and pxcor < 3 and
    pycor > -3 and pycor < 3
  ] [
    set pcolor 7
  ]
end

to setup-corridors
  ask patches with [ abs pxcor <= 1 and abs pycor <= 14 ] [ set pcolor 6 ]
  ask patches with [ abs pycor <= 1 and abs pxcor <= 14 ] [ set pcolor 6 ]
end

to-report entrance-patches
  report patches with [
    pxcor > -3 and pxcor < 3 and
    pycor > -3 and pycor < 3
  ]
end

;; ---------------- ER ROOMS ----------------

to setup-er-rooms
  set er-room-loads n-values num-er-rooms [0]

  ask patches with [pcolor = green] [
    set pcolor black
    set er-id nobody
  ]

  let s er-size

  if num-er-rooms >= 1 [
    ask patches with [
      pxcor >= (-14) and pxcor < (-14 + 2 * s) and
      pycor <= (14) and pycor > (14 - 2 * s)
    ] [
      set pcolor green
      set er-id 0
    ]
  ]

  if num-er-rooms >= 2 [
    ask patches with [
      pxcor <= (14) and pxcor > (14 - 2 * s) and
      pycor <= (14) and pycor > (14 - 2 * s)
    ] [
      set pcolor green
      set er-id 1
    ]
  ]

  if num-er-rooms >= 3 [
    ask patches with [
      pxcor >= (-14) and pxcor < (-14 + 2 * s) and
      pycor >= (-14) and pycor < (-14 + 2 * s)
    ] [
      set pcolor green
      set er-id 2
    ]
  ]

  if num-er-rooms >= 4 [
    ask patches with [
      pxcor <= (14) and pxcor > (14 - 2 * s) and
      pycor >= (-14) and pycor < (-14 + 2 * s)
    ] [
      set pcolor green
      set er-id 3
    ]
  ]
end

to-report er-patches
  report patches with [pcolor = green]
end

;; ---------------- PATIENTS ----------------

to setup-patients
  create-patients initial-patients [
    move-to one-of entrance-patches
    set size 1.2
    set shape "person"

    set health max list 1 (initial-severity + random 3 - random 3)
    set speed max list min-speed ((sqrt health / 10) * speed-factor)

    set being-treated? false
    update-colour
    set label precision health 0
    set label-color white
  ]
end

;; ---------------- MAIN LOOP ----------------

to go
  if empty-tick != -1 and ticks >= empty-tick + 10 [ stop ]

  if (not any? patients) and empty-tick = -1 [
    set empty-tick ticks
  ]

  ask patients [

    ;; ER patients handled first
    if being-treated? [
      receive-treatment
      update-colour
      set label precision health 0
      stop
    ]

    ;; death outside ER
    if health <= 0 [
      set patients-died patients-died + 1
      die
    ]

    deteriorate
    decide-movement

    set speed max list min-speed ((sqrt health / 10) * speed-factor)
    update-colour
    set label precision health 0
  ]

  tick
end

;; ---------------- HEALTH LOGIC ----------------

to deteriorate
  set health health - deterioration-rate
  if health < 0 [ set health 0 ]
end

to receive-treatment
  if not member? patch-here er-patches [ stop ]
  let id [er-id] of patch-here

  ;; intermittent treatment
  if ticks mod treatment-interval = 0 [
    if random-float 100 < er-success-rate [
      set health health + treatment-rate
    ]
  ]

  ;; deterioration continues
  let er-deterioration deterioration-rate * er-deterioration-factor
  set health health - er-deterioration

  ;; acute overload shock
  if random-float 100 < er-overload-risk [
    set health health - deterioration-rate
  ]

  ;; ER death
  if health <= 0 [
    set patients-died-in-er patients-died-in-er + 1
    set er-room-loads replace-item id er-room-loads
      max list 0 (item id er-room-loads - 1)
    die
  ]

  ;; recovery
  if health >= target-health [
    set patients-saved patients-saved + 1
    set er-room-loads replace-item id er-room-loads
      max list 0 (item id er-room-loads - 1)
    die
  ]
end

;; ---------------- MOVEMENT ----------------

to decide-movement
  if health < critical-threshold [ move-to-er ]
  if health >= critical-threshold [ wander ]
end

to wander
  if speed > 0.01 [
    let turn-angle (max-turn-angle * (health / 100))
    rt random-float turn-angle - random-float turn-angle
    attempt-move
  ]
end

to move-to-er
  let target one-of er-patches

  if target != nobody [
    face target
    attempt-move
  ]

  if member? patch-here er-patches [
    let id [er-id] of patch-here
    let current-load item id er-room-loads

    if (not being-treated?) and current-load < er-capacity and health < target-health [
      set being-treated? true
      set er-room-loads replace-item id er-room-loads (current-load + 1)
    ]
  ]
end

to attempt-move
  if speed < 0.01 [ stop ]

  let next-patch patch-ahead speed

  if next-patch != nobody and [pcolor] of next-patch = white [
    set heading heading + 180 + random 60 - random 60
    fd speed * 0.5
    stop
  ]

  if next-patch != nobody and [pcolor] of next-patch = 6 [
    fd speed * 1.2
  ]
  if next-patch = nobody or [pcolor] of next-patch != 6 [
    fd speed
  ]
end

;; ---------------- VISUAL STATE ----------------

to update-colour
  if being-treated? [ set color green ]
  if not being-treated? and health >= 50 [ set color blue ]
  if not being-treated? and health < 50 and health >= critical-threshold [ set color yellow ]
  if not being-treated? and health < critical-threshold [ set color red ]
end

to label-hospital-zones
  ask patch 1 0 [
    set plabel "ENTRY"
    set plabel-color black
  ]

  if num-er-rooms >= 1 [
    ask patch -12 12 [ set plabel "ER-1" set plabel-color black ]
  ]
  if num-er-rooms >= 2 [
    ask patch 12 12 [ set plabel "ER-2" set plabel-color black ]
  ]
  if num-er-rooms >= 3 [
    ask patch -12 -12 [ set plabel "ER-3" set plabel-color black ]
  ]
  if num-er-rooms >= 4 [
    ask patch 12 -12 [ set plabel "ER-4" set plabel-color black ]
  ]
end
