SWITCH mobility

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;                                                                                                  ;;
;; SWITCH - BIASed MODAL CHOICE SIMULATOR                                                           ;;
;; Carole Adam - March 2023 + April-May-June 2024                                                   ;;
;; Population calibrated from survey results, including perception biases                           ;;
;; Goal: show impact of urban planning on modal distribution, with and without habits and biases    ;;
;; v2 - debug display                                                                               ;;
;;                                                                                                  ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


;;;;;;;;;;;;;;;;;
;;   SPECIES   ;;
;;;;;;;;;;;;;;;;;

;; global variables
globals [
  ; indexes for accessing each mobility mode
  index-car
  index-bike
  index-bus
  index-walk
  mobilities   ; list of modes names in order

  ;; indexes for accessing each criteria
  index-ecolo
  index-comfort
  index-safe
  index-time
  index-price
  index-easy
  criterias   ; list of criterias names in order

  ; list of numbers of users per mobility
  number-users
  ;; list of values of each mode on each criteria - in the current urban planning of the city
  notes-modes

  ; list of filters per mode
  filtres-modes

  ; managing habits
  nb-trips-stored    ; how many trips remembered by each agent
]

;; citizens agents making up the population of the town
breed [ citizens citizen ]

citizens-own [
  dist-hw             ; home work distance
  accessibles         ; vector of booleans

  ; choosen mobility and its note
  mobility            ; current mobility, reflected in shape and color
  note-mobilite       ; satisfaction with current mobility

  ; individual priorities and scores
  objective-scores    ; list: mode scores computed from objective perceptions
  subjective-scores   ; list: mode scores computed from biased perceptions
  priorities          ; list: priorities of all 6 criterias

  ; habits management
  trips-list       ; list of last X trips to compute habits
  habits-list      ; list of frequencies associated to each mode in trips-list

  ; tracking type of decision
  trigger-habits?     ; true if decision by habit, false if decision based on rational score
  trigger-bias?       ; did the bias modify the choosen mode?
  trigger-constraint? ; did constraints prevent from making best choice?

  ; list of lists:
  deviations      ; deviations factors of evaluations of modes on criterias
  evaluations     ; biased evaluations
]


;;;;;;;;;;;;;;;;;;;;;;;;;;
;;    INITIALISATION    ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;

; SETUP button in the interface: initialises the simulator

to setup
  clear-all

  ; initialise indexes for modes and criterias
  setup-indexes
  set nb-trips-stored 100

  ;; initial values of criterias for each mode in the initial urban setting
  set-urban-survey

  ; initialise population with their individual priorities for criterias
  setup-population

  ; legend in the grid
  setup-patches

  ; visu switches
  set see-bikes? true
  set see-cars? true
  set see-bus? true
  set see-walk? true

  reset-ticks
  help
end

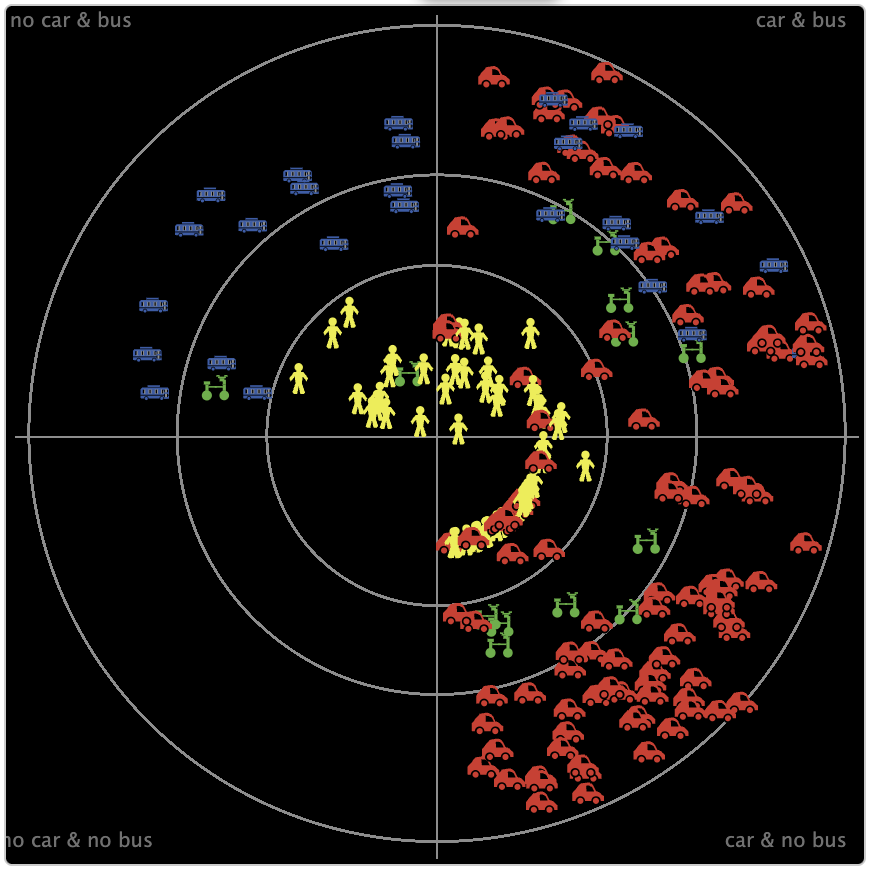

to setup-patches
  ask patches [set pcolor black set plabel ""]
  ;ask patches with [pxcor = 0 or pycor = 0] [set pcolor (black + 2) ]
  ask patch (max-pxcor - 1) max-pycor [set plabel "car & bus"]
  ask patch (max-pxcor - 1) (min-pycor + 1) [set plabel "car & no bus"]
  ask patch (min-pxcor + 6) (min-pycor + 1) [set plabel "no car & no bus"]
  ask patch (min-pxcor + 5) max-pycor [set plabel "no car & bus"]
  ask patches [set plabel-color (black + 4)]

  draw-circles
  draw-cadrans
end


; initialise indexes for modes and criterias
; used to access elements in lists

to setup-indexes
  set index-car 0
  set index-bike 1
  set index-bus 2
  set index-walk 3
  set mobilities (list "car" "bike" "bus" "walk")

  set index-ecolo 0
  set index-comfort 1
  set index-safe 2
  set index-time 3
  set index-price 4
  set index-easy 5
  set criterias (list "ecology" "comfort" "safety" "time" "price" "praticity")
end




;;;;;;;;;;;;; CREATE ENVIRONMENT  ;;;;;;;;;;;;;;;;;;;

;; MODES EVALUATION in INITIAL URBAN SETTING

to set-urban-survey
  ;; car bike bus walk
  ; init population with French statistics on modal distribution
  set number-users (list 76 2 16 6)
  ; stats on our survey sample of 650: (list 134 204 228 84)

  ;; NOTES MEDIAN USERS OF THE MODE
  ;let notes-bus (list 80.0 70.0 80.0 70.0 75.0 70.0)
  ;let notes-walk (list 100.0 80.0 80.0 50.0 100.0 85.0)
  ;let notes-bike (list 100.0 70.0 50.0 80.0 90.0 80.0)
  ;let notes-car (list 20.0 90.0 80.0 90.0 40.0 90.0)

  ;; NOTES MEDIAN ALL
  ; (list "ecology" "comfort" "safety" "time" "price" "praticity")
  ;let notes-bike (list 100.0 60.0 50.0 70.0 80.0 70.0)
  ;let notes-car (list 20.0 80.0 80.0 70.0 20.0 70.0)
  ;let notes-bus (list 80.0 60.0 80.0 60.0 70.0 60.0)
  ;let notes-walk (list 100.0 70.0 70.0 30.0 100.0 60.0)
  ;set notes-modes (list notes-car notes-bike notes-bus notes-walk)

  ;; MEDIANS REDRESSEES sur STATS FRANCAISES
  set notes-modes (list (list 18.8 85.8 76.2 83.2 34.4 82.4 ) (list 97.4 52.2 34.2 50.9 78.6 52.4 ) (list 70.5 53.0 71.0 46.0 69.4 46.2 ) (list 98.0 61.8 69.4 23.0 98.0 52.9 ) )

  ;; FILTERS - mean values of deviation over users of each mode
  let filtre-bike (list (list 0.68 0.93 0.94 0.87 1.17 0.77) (list 0.96 1.23 1.08 1.14 1.07 1.18) (list 0.91 0.92 0.97 0.82 0.92 0.84) (list 0.99 1.0 1.03 0.88 0.99 0.97) )
  let filtre-car (list (list 1.26 1.06 0.96 1.17 1.92 1.19) (list 0.88 0.83 0.66 0.62 0.89 0.7) (list 0.88 0.86 0.89 0.67 0.98 0.67) (list 0.96 0.87 0.86 0.76 0.96 0.88) )
  let filtre-bus (list (list 0.93 0.95 0.87 0.94 1.22 0.89) (list 0.93 0.89 0.93 0.92 0.93 0.88) (list 0.97 1.08 0.92 1.13 1.04 1.2) (list 0.98 0.9 0.95 0.99 0.97 0.97) )
  let filtre-walk (list (list 0.84 0.91 0.89 0.92 1.15 0.82) (list 0.87 1.05 0.96 1.03 0.93 0.98) (list 0.93 1.0 0.93 1.06 0.98 1.08) (list 0.97 1.16 1.02 1.65 0.98 1.34) )
  set filtres-modes (list filtre-car filtre-bike filtre-bus filtre-walk)
end


;;;;;;;;;;;;;;;; CREATE POPULATION ;;;;;;;;;;;;;;;;;;;;;;;;;

;; init population from survey results

to setup-population
  foreach mobilities [m ->
    let im (position m mobilities)
    create-citizens 2 * (item im number-users) [
      init-citizen
      init-mobility m
      init-position
    ]
  ]
end

; initialise a citizen - general settings

to init-citizen
  move-to one-of patches with [ not any? turtles-here ]
  set mobility ""
  set size 1.5
  ; lists of notes and priorities: full of 0 for now
  set objective-scores n-values (length mobilities) [0]
  set subjective-scores n-values (length mobilities) [0]
  set priorities n-values (length criterias) [0]
  ; habits - empty history initially
  set trips-list []
  ; initial frequency 0 for all modes
  set habits-list n-values (length mobilities) [0]
  ; decision trackers
  set trigger-habits? false
  set trigger-bias? false
  set trigger-constraint? false
end

to init-mobility [m]
  switch-to m
  set-random-distance m
  set-random-access m
  set trips-list n-values nb-trips-stored [m]
  set-mob-prios-survey m
  set evaluations notes-modes
  bias-evaluation
  ;; initialise evaluations of modes
  eval-mobility
end

to init-position
  ; position
  move-to patch 0 0
  face patch max-pxcor 0
  ; angle based on available mobilities
  let has-bus? item index-mode "bus" accessibles
  let has-car? item index-mode "car" accessibles
  (ifelse
    (has-bus? and has-car?)  [lt (5 + random 80)]
    has-bus? and not has-car? [lt (95 + random 80)]
    not has-bus? and has-car? [rt (5 + random 80)]
    not has-bus? and not has-car? [rt (95 + random 80)]
  )
  ; distance to center reflects home-work distance
  fd visual-distance dist-hw
end

; logarithmic visualisation of home-work distance in concentric circles

to-report visual-distance [d]
  report 7 * (log (d + 1) 5) + 0.3
end

;; random home-work distance for this mode, from survey
;; obtained with statsDistMode(lir,kstats)

to set-random-distance [qm]
  (ifelse
    qm = "bike" [set dist-hw bounded-gaussian 6.43 6.67 1 50]
    qm = "car"  [set dist-hw bounded-gaussian 21.29 23.1 2 190]
    qm = "bus"  [set dist-hw bounded-gaussian 11.16 13.59 1 95]
    qm = "walk" [set dist-hw bounded-gaussian 1.8 1.44 0.2 9]
  )
end

;; random accessibility of modes, from survey results

to set-random-access [qm]
  set accessibles n-values length mobilities [false]
  ; car and bus access: from statistics over the groups of users of this mode in survey
  (ifelse
    qm = "bike" [
      set-access "car" (random-float 100 > 29.9)
      set-access "bus" (random-float 100 > 10.29)
    ]
    qm = "car"  [
      set-access "car" true
      set-access "bus" (random-float 100 > 61.19)
    ]
    qm = "bus"  [
      set-access "car" (random-float 100 > 57.46)
      set-access "bus" true
    ]
    qm = "walk" [
      set-access "car" (random-float 100 > 50)
      set-access "bus" (random-float 100 > 8.33)
    ]
  )
  ; empirical max distance to walk / cycle
  ; current mob is accessible: some outliers will cycle / walk further than average
  set-access "bike" (qm = "bike" or dist-hw <= 15)
  set-access "walk" (qm = "walk" or dist-hw <= 5)
end

; shortcut to replace a boolean qb as accessibility of mode qm

to set-access [qm qb]
  set accessibles replace-item (index-mode qm) accessibles qb
end

; priority profile per mode, obtained from survey

to set-mob-prios-survey [mob]
  ;; priorities from survey - average over users of each mode
  ;; criterias: (list "ecology" "comfort" "safety" "time" "price" "praticity")
  (ifelse
    mob = "car" [set priorities (list 56.5 71.9 67.2 77.9 56.3 85.7)]
    mob = "bus" [set priorities (list 67.6 67.5 64.6 73.7 74.4 78.1)]
    mob = "bike" [set priorities (list 83.0 73.1 53.7 76.8 70.8 85.4)]
    mob = "walk" [set priorities (list 72.7 73.5 66.7 67.0 75.8 84.2)]
  )
  ; deviations for the current mode
  set deviations item (index-mode mob) filtres-modes
  ; random priority variation for some random heterogeneity
  foreach criterias [ crit -> factor-prio crit (1 - random-float 0.2 + random-float 0.2)]
end




;;;;;;;;;;;;;;;;;;;;;;;;;
;;   SIMULATION LOOP   ;;
;;;;;;;;;;;;;;;;;;;;;;;;;

;; main loop

to go
  ; citizens decision
  ask citizens [
    ; compute habits strengths from trip list
    compute-habits
    ; several situations
    choose-mobility
    ; enact change and update mobility score
    switch-to mobility
  ]
  ; visualisation of citizens based on 4 switches - removes histograms
  update-map
  ; next step
  tick
end

; visualisation of citizens based on 4 switches: each mode can be shown/hidden

to update-map
  ; background
  setup-patches
  ; citizens
  ask citizens with [mobility = "bike"][set hidden? not see-bikes?]
  ask citizens with [mobility = "car"][set hidden? not see-cars?]
  ask citizens with [mobility = "bus"][set hidden? not see-bus?]
  ask citizens with [mobility = "walk"][set hidden? not see-walk?]
end



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; MOBILITY EVALUATION and CHOICE ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;; ------- BIASES ------- ;;;

; 1) adapt filter according to habits
; compute individual filter as a weighed average between neutral (no habit: no deviation, factor = 1)
;   and full filter (strong habit: full deviation)

to compute-individual-filter
  let im index-mode mobility
  let mode-filter item im filtres-modes    ; list of lists of floats 0-1
  let coeff item im habits-list            ; between 0 and 100%
  foreach range length mobilities [qm ->
    foreach range length criterias [qc ->
      let val100 item qc (item qm mode-filter)
      ;; average weighed by habit
      let val (coeff * val100 + (100 - coeff) * 1) / 100
      set deviations (set-value deviations qm qc val)
    ]
  ]
end

;; 2) biased evaluations: apply personal perception filter

to bias-evaluation
  ; individual filter depends on habit strength of usual mode
  compute-individual-filter
  ; perceive urban values in the environment
  set evaluations notes-modes
  ; then bias them: apply multiplying factors to real notes-modes observed
  foreach mobilities [mob ->
    let im index-mode mob
    ; list of 6 values of this mode on criterias
    let vals item im evaluations
    foreach criterias [crit ->
      let ic index-criteria crit
      ; objective value
      let obj item ic vals
      ; multiplying factor
      let fact item ic (item im deviations)
      ; subjective value
      let subj precision (min (list 100 (obj * fact))) 1
      set vals replace-item ic vals subj
    ]
    set evaluations replace-item im evaluations vals
  ]
end

;; 3) compute rational mark as weighed average
;; a citizen recomputes the rational marks of the 4 modes
;; based on his priorities and his evaluation vector

to eval-mobility
  ; if objective switch is on subjective: bias perceptions, else keep environment values
  ifelse subjective? [bias-evaluation][set evaluations notes-modes]
  ; compute and store the objective and subjective scores of mobilities
  foreach mobilities [ mob ->
    ; objective scores are computed based on real environment values = notes-modes
    set objective-scores replace-item (index-mode mob) objective-scores (multicrit-eval priorities (item index-mode mob notes-modes))
    ; subjective scores are computed based on biased modes values = evaluations (set by bias-evaluation)
    ; subjective scores are actually objective if subjective? switch is off (since no filter biases the evaluations used to compute the score)
    set subjective-scores replace-item (index-mode mob) subjective-scores (multicrit-eval priorities (item index-mode mob evaluations))
  ]
  ;; constraints are static, determined at init
  ;; for inaccessible modes: replace subjective score with -1 so it is not considered in decision
  foreach (n-values length mobilities [i -> i]) [im ->
    if not (item im accessibles) [set subjective-scores replace-item im subjective-scores -1]
  ]
end


;;; ------- MOBILITY CHOICE - HABITS or RATIONAL ------- ;;;

to choose-mobility
  (ifelse
    ; random context change from time to time (roadwork, strike...) to force some variation
    random 100 < 1 [
      set subjective-scores (replace-item (index-mode mobility) subjective-scores 0)
      set mobility random-max-mode subjective-scores
    ]
    random 1000 < 5 [
      ; reset habits
      set trips-list (list)
    ]
    ; if habits triggered
    trigger-habits? [
      ;; habits: choose most used mobility (with probability = frequency in the past)
      set mobility random-max-mode habits-list
    ]
    ; otherwise, choose rationally
    [
      ; mobility evaluation: computes objective and subjective scores based on biased/real values of modes on criteria
      eval-mobility                                     ; compute mode scores, obj and subj
      set mobility random-max-mode subjective-scores    ; choose subjectively
      ; check if the choice is constrained (by distance or access to car/bus)
      let best random-max-mode objective-scores         ; compare with objective best choice
      set trigger-constraint? (item (index-mode best) subjective-scores = -1)  ; subjective score set to -1 in eval-mobility if mode is inaccessible
      ; if the choice is not optimal, but not habitual nor constrained, then it is biased
      set trigger-bias? (mobility != best and not trigger-habits? and not trigger-constraint?)     ; if they differ: the choice is biased
    ]
  )
end



;;; ------- MULTICRITERIA SCORING ALGORITHM ------- ;;;

;; compute note as product of list of (potentially biased) priorities * list of values

to-report multicrit-eval [list-prios list-values]
  let som sum (map [i -> (item i list-prios) * (item i list-values)] (n-values (length list-values) [i -> i]) )
  ;; divide by the sum of prios
  let nb sum list-prios
  report ifelse-value nb > 0 [som / nb] [0]
end



;;; ------- HABITS ------- ;;;

;; 4) Manage habits of one citizen

to compute-habits
  ; store mobility in list of trips - max nb-trips-stored (remove oldest if needed)
  set trips-list lput mobility trips-list
  if length trips-list > nb-trips-stored [set trips-list remove-item 0 trips-list]

  ; enough trips stored: compute habits
  if length trips-list >= nb-trips-stored [
    foreach mobilities [mob ->
      ; count this mode in past window
      let nb-trips length filter [i -> i = mob] trips-list
      ; compute frequency and store it as habit strength
      let mode-freq 100 * nb-trips / length trips-list
      let im index-mode mob
      set habits-list replace-item im habits-list mode-freq
    ]
  ]
  ; the agent triggers habit-decision based on proba of its own habit strength (some agents have stronger habits)
  ; and on the frequency of the usual mode (higher frequency = more chance to repeat)
  set trigger-habits? (25 + random 75 < max habits-list)

  ; if GUI switch is off, 'untrigger' habits for the citizen
  if not habits? [set trigger-habits? false]
end


;;; ------- MODE SWITCH ------- ;;;

; 5) enact change of mode
; actually change an agent's mobility mode
; and reflect it on its speed, + shape and color on map

to switch-to [qm]
  set mobility qm
  set note-mobilite (item (index-mode qm) subjective-scores)
  ; shape depends on mobility + halo based on which decision mode is selected for visu in GUI menu
  set shape shape-mode mobility
  ;ifelse shape = "bike" [set size 2] [set size 1]
  ; color just depends on mode (car:red, bus:blue, bike:green, walk:yellow)
  set color color-mode mobility
end




;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; INTERFACE BUTTONS         ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

; BUTTON - display help message in output panel. Called at init + Available anytime through the HELP button

to help
  clear-output
  output-print "Welcome to SWITCH mobility simulator"
  output-print "See INFO panel for quick start guide"
  output-print "INIT to create the population"
  output-print "Then run as LOOP or STEP by step"
  output-print "MAP shows citizens with mode as shape and color"
  output-print "LEGEND: yellow = pedestrians, green = cyclists,"
  output-print "        blue = bus, red = car"
  output-print "Modify urban planning and observe new modal distribution"
end

;; BUTTON - reset habits of all agents

to reset-habits
  ;; effacer les habitudes de tout le monde
  ask citizens [
    set trips-list []
    set habits-list n-values (length mobilities) [0]
    set trigger-habits? false
  ]
end

; BUTTON - to display a written report about selected mode and criterion

to poll
  clear-output
  output-print (word "Poll at time " ticks)
  output-print (word "Mean " which-criteria " of " which-mode " = " current-value " %")
  output-print (word "Mean priority of " which-criteria " = " (precision current-prio 1) " %")
  output-print (word "Mean score of " which-mode " = " mean-users-note which-mode " (users) vs " mean-notusers-note which-mode " (non-u)")

  ;; type of decision
  let tt count-decisions-mode which-mode "all"
  let tb count-decisions-mode which-mode "bias"
  let tc count-decisions-mode which-mode "constraint"
  let th count-decisions-mode which-mode "habit"
  output-print (word tt " citizens use " which-mode " : ")
  output-print (word "   " tb " are biased ; " tc " are constrained ; " th " by habit.")
end



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;        URBAN PLANNING       ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;; INCREASE or DECREASE values of MODES on CRITERIAS
;; im index of a mode
;; ic index of a criteria
;; delta value to add to the current value

to change-value [im ic delta]
  ; get current value of this mode on this criteria
  let old item ic (item im notes-modes)
  ; compute and bound new value
  let new (old + delta)
  set new min (list 100 new)
  set new max (list 0 new)
  ; actually replace current value with new value in the list
  let notes-one-mode (item im notes-modes)
  set notes-one-mode (replace-item ic notes-one-mode new)
  set notes-modes (replace-item im notes-modes notes-one-mode)
end

;; button "++" : increase value by 5
;; button "--" : decrease value by 5
;; REMARK: not all changes make sense, for instance no urban planning can make cars fully ecological, or walking super fast...


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; POPULATION PRIORITIES   ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;; buttons in interface (communication campaigns to change priorities)
;; change priority of currently selected criteria for all the population

to change-prio [delta]
  ask citizens [
    ; index of the criteria (selected as text)
    let ic index-criteria which-criteria
    ; old value of priority of the criteria
    let ov (item ic priorities)
    ; new value: add delta and bound 0-100
    let nv round (ov + delta)
    set nv min (list 100 nv)
    set nv max (list 0 nv)
    ; change priority of the selected criteria, to the new value
    set priorities replace-item ic priorities nv
  ]
end

;; button "++" : increase value by 5
;; button "--" : decrease value by 5
;; REMARK: no communication campaign is that efficient in reality



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;         ACCESSORS         ;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

; set value of a mode on a criteria to a given value
; qm index of a mode, can be obtained from name, ex: index-mode "bus"
; qc index of a criteria, can be obtained from name, ex: index-criteria "ecology"
; qv new value of this mode on this criteria

to-report set-value [li qm qc qv]
  ;; bound value between 0 and 100
  set qv min (list 100 qv)
  set qv max (list 0 qv)
  ; replace value of that criteria in the global list of notes
  set li (replace-item qm li (replace-item qc (item qm li) qv))
  report li
end

; modify score of one mode

to-report set-score [scores qm qv]
  set scores replace-item (index-mode qm) scores qv
  report scores
end

; set priority for current citizen of a (text) criteria to
; its old value multiplied by a factor ; value will stay bounded 0-100

to factor-prio [qc qf]
  let ic index-criteria qc
  let ov item ic priorities
  let nv min (list 100 round (ov * qf))
  set priorities (replace-item ic priorities nv)
end

; all positions of a value in a list

to-report positions [qv qli]
  let index-list range length qli
  let position-list (map [ [list-item index] -> ifelse-value qv = list-item [index][FALSE] ] qli index-list)
  report filter [index -> index != false] position-list
end

;; one random mobility with max score in score list received (in case of equal scores of more than 1 mode)
;; called with list of scores or list of frequencies

to-report random-max-mode [liste]
  let maxi max liste
  let poslist positions maxi liste
  let rmm (one-of map [i -> (item i mobilities)] poslist)
  report rmm
end

; index of a mode given as a string ("car", "bike", etc)

to-report index-mode [qm]
  (ifelse
    qm = "car" [report index-car]
    qm = "bike" [report index-bike]
    qm = "bus" [report index-bus]
    qm = "walk" [report index-walk]
    )
end

to-report has-access? [qm]
  report item (index-mode qm) accessibles
end

; index of a criteria, given as a string ("ecology, "price", etc)

to-report index-criteria [wc]
  (ifelse
    member? "ecolo" wc [report index-ecolo]
    member? "price" wc [report index-price]
    member? "safe" wc [report index-safe]
    member? "comfort" wc [report index-comfort]
    member? "pratic" wc [report index-easy]
    member? "time" wc [report index-time]
    [show wc show "error unknown criteria !!!"]
  )
end

;; INITIALISE RANDOM GAUSSIAN
;; bounded gaussian for initialising attributes

to-report bounded-gaussian [avg dev bas haut]
  let v random-normal avg dev
  if v < bas [set v bas]
  if v > haut [set v haut]
  report v
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;; HISTOGRAM VISUALISATION ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;; visualise histogram of priorities

to visu-prio
  ask patches [set plabel ""]
  ask turtles [ht]
  show-legend "PRIORITIES"
  let i -15
  let j -15
  let c 0
  ; one histogram per mobility
  foreach mobilities [mob ->
    ; the list could be empty if nobody has this mobility
    ifelse any? citizens with [mobility = mob] [   ; cpt > 0 [
      let ql n-values (length criterias) [ic -> mean [(item ic priorities)] of citizens with [mobility = mob]]
      show-histog i j ql mob
    ]
    [
      ; bottom label with mobility and number of users
      ask patch (i + 3) j [set plabel (word mob " : 0")]
    ]
    (ifelse
      c = 0 [set c (c + 1) set j (j + 19)]
      c = 1 [set c (c + 1) set i (i + 21)]
      c = 2 [set c (c + 1) set j (j - 19)]
    )
  ]
end

; visualise histogram of values of modes on criterias

to visu-values
  ask patches [set plabel ""]
  ask turtles [ht]
  show-legend "VALUES"
  let i -15
  let j -15
  let c 0
  ; one histogram per mobility
  foreach mobilities [mob ->
    let ql n-values (length criterias) [ic -> item ic (item (index-mode mob) notes-modes)]
    show-histog i j ql mob

    ; add a bar for the average value + associated legend
    show-bar (mean ql) (i + 6) j gray
    ask patch 0 -3 [set pcolor gray]
    ask patch -1 -3 [set plabel "average"]

    (ifelse
      c = 0 [set c (c + 1) set j (j + 19)]
      c = 1 [set c (c + 1) set i (i + 21)]
      c = 2 [set c (c + 1) set j (j - 19)]
    )
  ]
end

;; central legend of histograms

to show-legend [title]
  ask patch 1 4 [set plabel title]
  foreach n-values (length criterias) [i -> i] [ic ->
    let crit item ic criterias
    ask patch 0 (3 - ic) [set pcolor color-criteria crit]
    ask patch -1 (3 - ic) [set plabel crit]
  ]
end

;; histogram for one given mobility
;; qx and qy coordinates of starting patch
;; ql the list to visualise as histogram
;; qm the mobility (for legend)

to show-histog [qx qy ql qm]
  ; bottom label with mobility and number of users
  let cpt count citizens with [mobility = qm]
  ask patch (qx + 3) qy [set plabel (word qm " : " cpt)]
  ;; show values in list ql as vertical bars
  ;; the first bar starts in patch qx qy
  foreach n-values (length ql) [i -> i] [ic ->
     show-bar (item ic ql) (qx + ic) qy (color-criteria item ic criterias)
  ]
end

; show one vertical bar
; qx * qy : starting position
; val : value defining height of bar
; qcol : color of bar

to show-bar [val qx qy qcol]
  ; number of patches that turn into the color associated with this criteria
  ask min-n-of round (val / 10) (patches with [pxcor = qx and pycor > qy]) [pycor - qy] [set pcolor qcol]
  ; the top patch also shows the numerical value, rounded
  ask patch (qx) (qy + round (val / 10) + 1) [set plabel round val]
end

;; associate a color to each criteria (used for legend and histograms)

to-report color-criteria [qc]
  (ifelse
    qc = "ecology" [report green]
    qc = "price"   [report orange + 1]
    qc = "safety"  [report magenta]
    qc = "time"    [report yellow - 1]
    qc = "comfort" [report sky - 1]
    qc = "praticity" [report cyan - 1]
    [report grey]
    )
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;; REPORTERS - REPORTERS ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;; MONITORS

; for monitor in GUI, based on selectors in GUI for mode and criteria
; current value in the urban setting of this mode on this criteria

to-report current-value
  let im index-mode which-mode
  let ic index-criteria which-criteria
  report (item ic (item im notes-modes))
end

; for monitor in GUI, based on selectors (mode + criteria)
; current average priority of this criteria in population

to-report current-prio
  if count citizens = 0 [report 0]
  report mean [item (index-criteria which-criteria) priorities] of citizens
end


;; AVERAGE MARKS - COMPARATIVE monitors

;; average mark of a mode, for the users of this mode

to-report mean-users-note [qm]
  if count citizens with [mobility = qm] = 0 [report 0]
  ;let moy mean [item (index-mode qm) subjective-scores] of citizens with [mobility = qm]
  let moy mean [note-mobilite] of citizens with [mobility = qm]
  report precision moy 2
end

; average mark of non users of a mode

to-report mean-notusers-note [qm]
  if count citizens with [mobility != qm] = 0 [report 0]
  let moy mean [item (index-mode qm) subjective-scores] of citizens with [mobility != qm]
  report precision moy 2
end

to-report mean-all-note [qm]
  if count citizens with [mobility != qm] = 0 [report 0]
  let moy mean [item (index-mode qm) subjective-scores] of citizens
  report precision moy 2
end

; MONITOR - deviation = over-evaluation of self mode
; deviation between individual score (subjective/objective depending on GUI switch) and objective score of current mobility mode
; deviation is null if the individual is objective; positive if they over-evaluate their mode

to-report deviation-self-mode
  report note-mobilite - mean-all-note mobility
end



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;       VISUALISATION       ;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

; color per mode, for visualisation on map

to-report color-mode [qm]
  (ifelse
    qm = "bike" [report green]
    qm = "bus" [report blue]
    qm = "car" [report red]
    qm = "walk" [report yellow]
    [report gray]
    )
end

; shape per mode, also depends on selected visu (select in GUI menu visu-ppl)
; add a halo around the citizens that decided based on bias/habits/constraint

to-report shape-mode [qm]
  ifelse not mode2bool visu-ppl
  ; with halo
  [report qm]
  ; without halo
  [report (word qm "-halo")]
end




;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;     THREE PLOTS on the RIGHT      ;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;; --------  HAPPINESS PLOT  -------- ;;;
;; for the happiness plot in GUI - wrt mobility
;; qm which mobility mode (string)

to-report happy [qm]
  let mobs citizens with [mobility = qm]
  ; if no user of this mode, report the score given by non-users (users of other modes)
  if count mobs = 0 [report mean-notusers-note qm]
  report mean [item (index-mode mobility) subjective-scores] of mobs
end

;;;  -------  MOBILITY DISTRIBUTION PLOT  -------  ;;;

to-report mobility-percent [qm]
  if count citizens = 0 [report 0]
  report 100 * count citizens with [mobility = qm] / count citizens
end

;;;  --------  DECISIONS TRACKING PLOT  ------- ;;;

;; POLL report - percentage of citizens users of mode qm, with decision type qdt

to-report count-decisions-mode [qm qdt]
  report count ((select-citizens qdt) with [mobility = qm])
end

;; PLOT of decision types percentage in total population

to-report percent-decision-type [qdt]
  if count citizens = 0 [report 0]
  report (count select-citizens qdt) * 100 / count citizens
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; DECISION MODES - for visu and monitors ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

; call on a citizen to deduce boolean to check before viz

to-report mode2bool [qvm]
  (ifelse
    qvm = "bias" [report trigger-bias? and not trigger-constraint?]
    qvm = "constraint" [report trigger-constraint?]
    qvm = "bad habits" [report trigger-habits? and cog-dissonance? and not trigger-constraint?]
    qvm = "habits" [report trigger-habits? and not trigger-constraint?]
    ; neutral: nobody shows halo
    qvm = "neutral" [report false]
    )
end

; select citizens that activate the selected decision mode
; used in MONITOR that counts them next to menu

to-report select-citizens [qdt]
  report citizens with [mode2bool qdt]
end

; cognitive dissonance if selected mode is not the best subjective

to-report cog-dissonance?
  report (item (index-mode mobility) subjective-scores) != max subjective-scores
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; MAP SHOWING DISTANCES TO CYCLE / WALK  ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

; a turtle draws a circle of given radius then dies

to circle [radius]
  ; drawing turtle
  create-turtles 1 [
    set color gray
    pen-up
    ; place on tangent
    setxy radius 0
    set heading 0
    ; circle approximation in 360 steps
    let step ( 2 * pi * radius ) / 360
    pen-down
    ; loop
    repeat 360 [fd step left 1]
    die
  ]
end

; draw 2 circles illustrating the walking distance and cycling distance

to draw-circles
  ; radius must reflect the distance
  circle visual-distance 15  ;; bike
  circle visual-distance 5  ;; walk
  circle visual-distance 80
end

; draw the lines for the 4 sectors

to draw-cadrans
  create-turtles 1 [
    set color gray
    pen-up
    setxy min-pxcor 0
    pen-down
    move-to patch max-pxcor 0
    pen-up
    setxy 0 min-pycor
    pen-down
    move-to patch 0 max-pycor
    die
  ]
end


;; (C) Carole Adam, March 2023, April 2024 - https://nausikaa.net/
