NBSINFRA Aveiro

extensions [ gis ]

globals [
  ;; seasons ;;
  season ; conditions of weather, temperature, humidity in different seasons of the year

  ;; soil water retention variables ;;
   soil_humidity
   soil_suction ; related to soil humidity

  ;; vegetation variables ;;
   ntree_num  ; number of patches with trees of naturally green areas
   nshrub_num ; number of patches with shrubs of naturally green areas
   nveg_ratio ; ratio of trees over shrubs of naturally green areas
   fshrub_num ; number of patches with vegetation of fluvial areas
   utree_num  ; number of patches with trees of urban green areas
   ushrub_num ; number of patches with shrubs of urban green areas
   uveg_ratio ; ratio of trees over shrubs of urban green areas

   flora ; IVI, composite index to monitor the diversity and density of flora species
   veg_cover ; ratio between vegetation elements (vgts) and total area (patches)
   ideal_veg ; intial IVI at tick 0, estimated at 79.33 for woody plants in urban green spaces by Muthulingam & Thangavel, 2012
   current_regeneration_rate ; the regeneration rate of every tick, as defined by soil humidity and fertility
   sfi ; soil fertility index calculated as: SFI= organic C% + pH adjusted from Panwar et al. 2011
   ideal_sfi ;  soil fertility index for min carbon content 5% and max soil acidity 6.0
   vegetation   ; composite index to monitor the condition of the flora and the soil fertility

  ;; biodiversity variables ;;
   flora_diversity ; Shannon's divesity index (H') -Σp*lnp (Morris et al. 2014) at the beginning of the simulation
   fl_d ; Shannon's divesity index (H') at every tick
   fauna_diversity ; correlated to flora_diversity and soil quality according to Qian 2007
   fn_d ; fauna diversity at every tick
   ideal_biodiversity ; ideal biodiversity value calculated at the begginging of the run
   biodiversity ; total biodiversity performance index assessed in every tick

  ;; community variables ;;
   initial_community_index ; density of people attracted by culture and recreation at the beginning of the run
   community_index ; density of people attracted by culture and recreation in every tick
   community ; assessed community index (percentage difference form initial state) in every tick

  ;; air quality variables ;;
  air          ; composite index to monitor the quality of air (cooling + aqii)
  air_sample ; total patches of atmosphere in contact with NBS area - sample for the assessment
  cool_patches ; total patches of atmosphere in contact with vegetation agents (vgts)
  aqii ; composite index Air Quality Impact Index (AQII) by Datta et al. 2021,
       ;adjusted only for the physical characterisits of plants
       ;assuming that all examined plants have similar Air Pollution Tolerance Index (API)
  ideal_aqii ; reference AQII index for the specific NBS

  ;;; ECOSYSYEM SERVICES ;;;
regulating ; services that regulate the elements and functions of the examined ecosystem
  erosion_control_value ;
  gas_regulation_value ;
  microclimate_regulation_value ;
  nutrient_cycling_value ;
  pollination_value ;
  refugia_value ;
  soil_formation_value ;
  water_regulation_value ;
  waste_treatment_value ;
provisioning ; services that provide additional properties to the examined ecosystem
  food_production_value ;
  genetic_resources_value ;
  raw_materials_value ;
  water_supply_value ;
cultural ; services that provide cultural, recreational, aesthetic aspects to the examined ecosystems
  cultural_use_value ;
  recreation_value ;

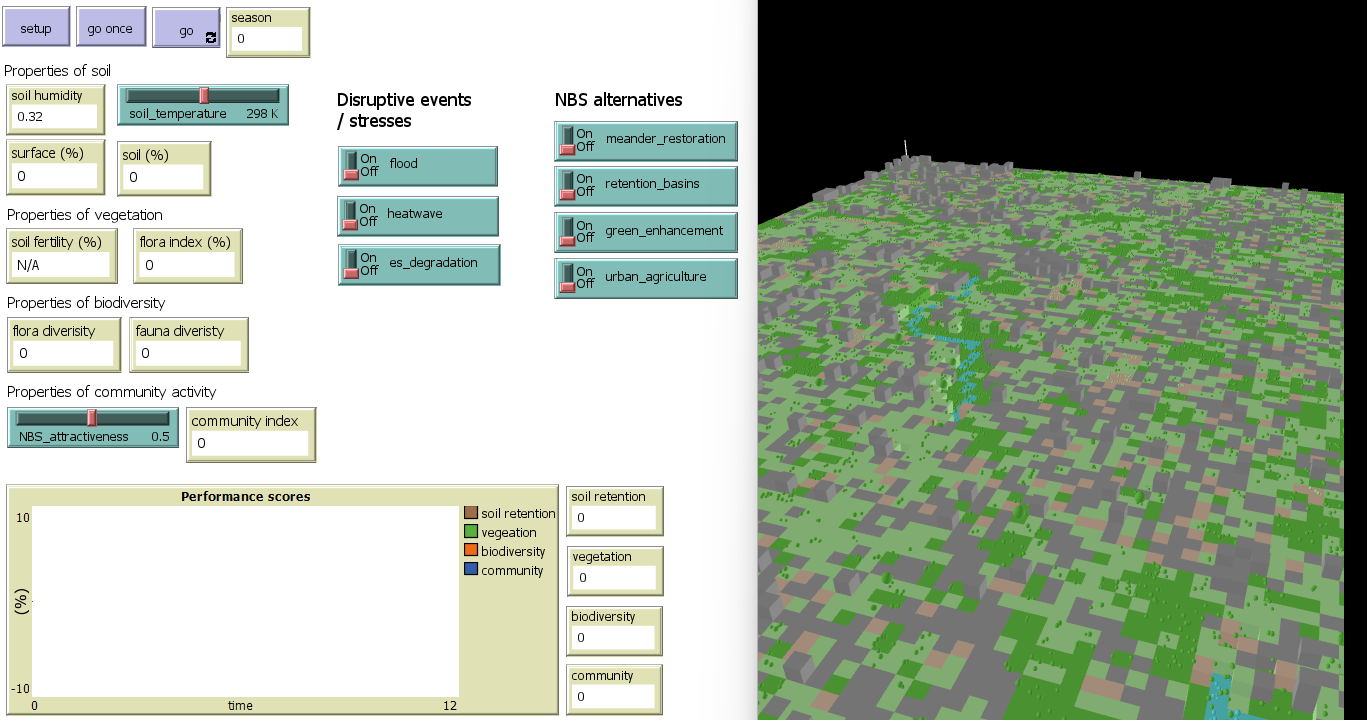

  ;; BUTTONS, SWITCHES, AND SLIDERS ;;

  ;; NBS Alternatives defined by the City Lab of Aveiro ;;
  ; meander_restoration ; restore the stream's natural curves; leaky dams
  ; retention_basins ; natural rainwater retention ponds in fluvial areas
  ; green_enhancement ; planting native vegetation species (roots structures, filter pollutants); promotion of permeable pavements (in private property)
  ; urban_agriculture ;  agricultural production, vegetable gardens

  ; soil_temperature ; absolute temperature of soil as estimated per season
  ; NBS_attractiveness ; quantitive estimation of attractiveness of local community to NBS infrastructure

  ; flood ; switch to initiate the disruptive event of flood

]

breed [nvgts nvgt]
breed [uvgts uvgt]
breed [fvgts fvgt]
breed [agrls agrl]
breed [ppls ppl]
breed [anms anm]

patches-own
[
  is-natural?  ;whether a patch represents natural green surface
  is-urban?    ;whether a patch represents urban green surface
  is-fluvial?  ;whether a patch represents fluvial surface
  is-agric?    ;whether a patch represents agricultutal surface
  is-paved?    ;whether a patch represents paved surface
  atmosphere?  ;whether a patch represents atmospheric volume

; related to cultural / social aspects
  hist-bld?   ;whether a patch represents a historical building

; related to soil water retention
  surface      ; composite index of surface characterisitcs (LID BMP parameter)
               ; storage depth/berm height/barrel height, vegetation volume, surface roughness, surface slope
  soil         ; composite index of soil characterisitcs (LID BMP parameter)
               ; wilting point, humidity
  soil_water_retention ; index combining both the surfance and soil indices
  surface_roughness; 0.1 for soil and different vegetation roughness
  ideal_roughness; 0.1 for RG
  vegetation_volume ; average size of vegetation agents in radius 3 of the examined patch
  ideal_vegetation_volume ;5/100 for RG
  ideal_soil_humidity; 0.32 /32% for normal clay (Minnesota Stormwater Manual, 2022)
  s_h; soil humidity of patches
  max_soil_humidity; 0.45 for average normal clay
  wilting_point; 0.20 minimum amount of water in the soil that the plant requires not to wilt
  min_wilting_point; 0.15 for normal clay (Minnesota Stormwater Manual, 2022)
  ideal_soil_suction ; max soil suction for 32% relative humidity in 25oC

 ; related to vegetation
  organic_content; percnetage of organic material in soil, necessary for the vegetation

 ; related to air quality - cooling due to shading and evapotranspiration and reduction of the pollution levels
  cooling    ; percentage of air patches with reduced temperature * mean temperature reduction
  cool_dif ; absolute mean temperature difference during daytime determined by Kim et al. 2024

]

turtles-own
[
  aqii_habit ; subindex of tree habit, based on plant's appearance, growth form and architecture
  aqii_canopy ; density of canopy structure: sparse-semidense-dense
  aqii_leaf ; Leaf Area Index (LAI) for each species

  original_size ; the reference size of vegetation agents at the beginning of the run
]

to setup
  clear-all
  import-pcolors "background.png"
  setup-model
  setup-vegetation
  setup-soil-water-retention
  setup-community
  setup-fauna
  setup-biodiversity
  setup-NBS_alternatives
  reset-ticks
end

to go
  seasons_change
  assess-soil-water-retention
  assess-vegetation
  assess-biodiversity
  assess-community
  assess-air
  assess-ES

  if flood = true
    [toflood
     if flood = false
        [retain_water
         recover_flood_ecosystem]]



  tick

  if ticks >= 12
    [stop]
end

;;; SETUP PROCEDURES ;;;  SETUP PROCEDURES ;;;  SETUP PROCEDURES ;;;

to setup-model

  ask patches
    [set is-natural? false
     set is-fluvial? false
     set atmosphere? false]

;; setup natural green ;;
  ask patches with [pcolor > 0 and pcolor <= 5.5]
    [set is-natural? true
     set is-paved? false
     set pcolor green] ; green = 55

;; setup urban green ;;
  ask patches with [pcolor > 5.5 and pcolor <= 7.5]
    [set is-urban? true
     set is-paved? false
     set pcolor 57]

;; setup agricultural land ;;
  ask patches with [pcolor > 38 and pcolor < 39]
    [set is-agric? true
     set is-paved? false
     set pcolor 37]

;; setup built environment ;;
  ask patches with [pcolor >= 9 and pcolor < 10]
    [ask patches with [pxcor = [pxcor] of myself and pycor = [pycor] of myself and pzcor = 1 ]
      [set is-natural? false
       set is-paved? true
       set pcolor grey]]

  ask patches with [pcolor != 55 and pcolor != 57 and pcolor != 37 and pzcor = 0]
    [set is-natural? false
     set is-paved? true
     set pcolor grey]

;; setup atmosphere ;;
  ask patches with [pzcor > 0]
    [set atmosphere? true]

;; setup contours ;;
  ask patches with [pxcor >= -26 and pxcor <= -22 and
                    pycor >= 12 and pycor <= 30 and
                    pzcor = 0 and
                    is-paved? = false ]
   [ask patches with [pxcor = [pxcor] of myself and
                      pycor = [pycor] of myself and
                      pzcor = -1 ]
         [set pcolor [pcolor] of myself]
    set pcolor 0
    set atmosphere? true]

  ask patches with [pxcor >= -21 and pxcor <= -15 and
                    pycor >= 12 and pycor <= 16 and
                    pzcor = 0 and
                    is-natural? = true]
   [ask patches with [pxcor = [pxcor] of myself and
                      pycor = [pycor] of myself and
                      pzcor = -1 ]
         [set pcolor [pcolor] of myself]
      set pcolor 0
      set atmosphere? true]

   ask (patch-set patch -14 8 0 patch 11 -22 0 patch 12 -20 0)
   [ask patches with [pxcor = [pxcor] of myself and
                      pycor = [pycor] of myself and
                      pzcor = -1 ]
         [set pcolor [pcolor] of myself]
      set pcolor 0
      set atmosphere? true]

  ask patches with [pxcor >= -17 and pxcor <= -12 and
                   pycor >= -6 and pycor <= 11 and
                   pzcor = 0 and
                   is-natural? = true]
   [ask patches with [pxcor = [pxcor] of myself and
                      pycor = [pycor] of myself and
                      pzcor = -1 ]
         [set pcolor [pcolor] of myself]
      set pcolor 0
      set atmosphere? true]


  ask patches with [pxcor >= 10 and pxcor <= 17  and
                    pycor >= -27 and pycor <= -16 and
                    pzcor = 0 and
                    is-natural? = true]
   [ask patches with [pxcor = [pxcor] of myself and
                      pycor = [pycor] of myself and
                      pzcor = -1 ]
         [set pcolor [pcolor] of myself]
     set pcolor 0
     set atmosphere? true]

  ask patches with [pcolor = green and pzcor = -1]
    [set is-natural? true
     set is-paved? false]

  ask patches with [pcolor = 57 and pzcor = -1]
    [set is-urban? true
     set is-paved? false]

  ask patches with [pcolor = 37 and pzcor = -1]
    [set is-agric? true
     set is-paved? false]

 ;; setup fluvial areas ;;
  ask (patch-set  patch -24 30 -1 patch -24 29 -1 patch -24 28 -1 patch -24 27 -1 patch -23 26 -1 patch -23 25 -1 patch -24 24 -1 patch -24 23 -1 patch -24 22 -1
                  patch -25 21 -1 patch -26 20 -1 patch -26 19 -1 patch -25 18 -1 patch -25 17 -1 patch -25 16 -1 patch -24 15 -1
                  patch -23 14 -1 patch -22 14 -1 patch -21 14 -1 patch -20 14 -1 patch -19 14 -1 patch -18 14 -1
                  patch -17 14 -1 patch -17 13 -1 patch -16 12 -1 patch -16 11 -1 patch -16 10 -1 patch -16 9 -1
                  patch -15 8 -1 patch -15 7 -1 patch -14 6 -1 patch -14 5 -1 patch -13 4 -1 patch -13 3 -1 patch -13 2 -1
                  patch -13 1 -1 patch -13 0 -1)
      [set pcolor cyan
       set is-fluvial? true]

   ask (patch-set patch 11 -19 -1 patch 11 -20 -1 patch 11 -21 -1 patch 12 -21 -1 patch 13 -21 -1 patch 14 -21 -1
                  patch 15 -22 -1 patch 16 -23 -1 patch 17 -24 -1 patch 17 -25 -1 patch 17 -26 -1)
      [set pcolor cyan
       set is-fluvial? true]
end

to setup-vegetation

  ;;; natural green ;;;
  set ntree_num 60
  set nshrub_num ntree_num
  set nveg_ratio 2
  let ntrees n-of ntree_num patches with [is-natural? = true]
  ask ntrees
    [sprout-nvgts 1 [set color green
                     set zcor [pzcor] of myself + size
                     set shape "circle"
                     set size (random-normal 0.719 0.09)]] ; mean size and sd adapted from Tarrega et al. (2011)
  ask ntrees
    [let nshrubs n-of nshrub_num other patches with [is-natural? = true]
     ask nshrubs
         [sprout-nvgts nveg_ratio [set color green
                                   set shape "circle"
                                   set size (random-normal 0.24 0.03)
                                   set zcor [pzcor] of myself + size + 0.3
                                   forward 0.5]]]

  ;;; urban green ;;;
  set utree_num 50
  set ushrub_num utree_num
  set uveg_ratio 2
  let utrees n-of utree_num patches with [pcolor = 57]
  ask utrees
    [sprout-uvgts 1 [set color green
                     set zcor [pzcor] of myself + size
                     set shape "circle"
                     set size (random-normal 0.719 0.09) ]]

 ask utrees
    [let ushrubs n-of ushrub_num other patches with [pcolor = 57]
     ask ushrubs
         [sprout-nvgts uveg_ratio [set color green
                                   set shape "circle"
                                   set size (random-normal 0.24 0.03)
                                   set zcor [pzcor] of myself + size + 0.3
                                   forward random-float 0.5]]]

  ;;; fluvial green ;;;
  set fshrub_num 3
  let fshrubs patches with [is-fluvial? = true]
  ask fshrubs
        [sprout-fvgts fshrub_num [set color cyan
                                  set shape "circle"
                                  set size (random-normal 0.24 0.03)
                                  set zcor [pzcor] of myself + size + 0.3
                                  forward random-float 0.5]]

 ;;; agricultural land ;;;
  ask patches with [is-agric? = true and
                    count (neighbors4 with [is-agric? = true]) > 1]
        [sprout-agrls 3 [set color 57
                         set shape "circle"
                         set size (random-normal 0.24 0.03)
                         set zcor [pzcor] of myself + size + 0.3
                         forward random-float 0.5]]
end

to setup-soil-water-retention

  ask patches with [pcolor != 0]
  [set ideal_vegetation_volume 0.05
   set ideal_roughness 0.1
   set ideal_soil_humidity 0.32
   set s_h ideal_soil_humidity
   set soil_humidity mean [s_h] of patches with [pcolor != 0 and pycor > 0 and pycor < 40 and pxcor < 0 and pxcor > -32] ;set this variable to specific number for quick runs
   set max_soil_humidity 0.40
   set min_wilting_point 0.15
   set ideal_soil_suction -0.00001 * ((8.314 * 298)/ 1 * 18.016) * ln(0.32)]

ifelse soil_humidity != 0
  [set soil_suction -0.00001 * ((8.314 * soil_temperature)/ 1 * 18.016) * ln(soil_humidity)]
  [set soil_suction -0.00001 * (8.314 * soil_temperature)/ 1 * 18.016 ]

 ask patches with [pzcor = 0]
    [ifelse any? turtles-here
      [set vegetation_volume mean [size] of (turtle-set nvgts uvgts fvgts agrls) in-radius 1]
      [set vegetation_volume 0]]

 ask patches
     [ifelse vegetation_volume > 0.001
        [set surface_roughness vegetation_volume ]
        [set surface_roughness 0.10]  ]

  ask patches with [is-natural? = true]
      [set organic_content 28]
  ask patches with [is-urban? = true]
     [set organic_content 8]
  ask patches with [is-agric? = true]
     [set organic_content 6]
  ask patches with [is-fluvial? = true]
     [set organic_content 10]
end

to setup-community

 ;; historical buildings ;;
  ask patches with [pzcor = 1]
    [set hist-bld? false]

  ask patches with [pzcor = 1 and
                    pxcor > -10 and pxcor < 10 and
                    pycor > 0 and pycor < 50 and
                    is-paved? = true ]
  [;set pcolor orange
   set hist-bld? true]

 ask patches with [pzcor = 1 and
                    pxcor > -20 and pxcor < -12 and
                    pycor > -10 and pycor < 30 and
                    is-paved? = true ]
  [;set pcolor orange
   set hist-bld? true]

  ask patches with [pzcor = 1 and
                    pxcor > 20 and pxcor < 40 and
                    pycor > -20 and pycor < -5 and
                    is-paved? = true ]
  [;set pcolor orange
   set hist-bld? true]

  ask patches with [pzcor = 1 and
                    pxcor > -30 and pxcor < -15 and
                    pycor > -20 and pycor < -5 and
                    is-paved? = true ]
  [;set pcolor orange
   set hist-bld? true]

;; community agents ;;
  ask patches with [hist-bld? = true and count (neighbors with [pzcor = 0 and is-paved? = false]) > 4]
      [sprout-ppls 1 [set color orange
                      set zcor [pzcor] of myself
                      set shape "square"
                      set size 0.10
                      forward 1]]

  ask patches with [is-fluvial? = true and count (neighbors with [is-paved? = false]) > 4]
      [ifelse NBS_attractiveness <= 0.50
           [sprout-ppls 1 [set color orange
                           set zcor [pzcor] of myself
                           set shape "square"
                           set size 0.10
                           forward 0.50]]
           [sprout-ppls 2 [set color orange
                           set zcor [pzcor] of myself
                           set shape "square"
                           set size 0.10
                           forward 1]]  ]

  set initial_community_index count ppls / count patches with [pcolor != 0]
end

to setup-fauna

  create-anms 16 * (count nvgts with [size > 2 ])  ; nest per tree density from Alonso et al. 1991
         [set color yellow
          set size random-float 0.3
          setxyz random-xcor random-ycor -2]

  create-anms 2.75 * (count nvgts with [size <= 2 and size > 0.5 ])  ; nest per tree density from Alonso et al. 1991
         [set color yellow
          set size random-float 0.5
          setxyz random-xcor random-ycor -3]

  create-anms 2.75 * (count uvgts with [size <= 2 and size > 0.5 ])  ; nest per tree density from Alonso et al. 1991
         [set color yellow
          set size random-float 0.5
          setxyz random-xcor random-ycor -3]

  create-anms 3 * (count fvgts with [size >= 0.20 ])
         [set color yellow
          set size random-float 0.5
          setxyz random-xcor random-ycor -3]

  create-anms 1 * (count agrls with [size >= 0.30 ])
         [set color yellow
          set size random-float 0.5
          setxyz random-xcor random-ycor -3]
end

to setup-biodiversity

   let floral_agents (turtle-set nvgts fvgts uvgts agrls)
   ask turtles
       [let diversity_1 (count nvgts with [size <= 0.30] / count floral_agents) ; Shannon's divesity index (H') in Morris et al. 2014
        let diversity_2 (count nvgts with [size > 0.30] / count floral_agents)
        let diversity_3 (count fvgts / count floral_agents)
        let diversity_4 (count uvgts with [size <= 0.70] / count floral_agents)
        let diversity_5 (count uvgts with [size > 0.70] / count floral_agents)
        let diversity_6 (count agrls / count floral_agents)

        set flora_diversity -1 * diversity_1 * ln diversity_1 + -1 * diversity_2 * ln diversity_2 +
                            -1 * diversity_3 * ln diversity_3 + -1 * diversity_4 * ln diversity_4 +
                            -1 * diversity_5 * ln diversity_5]

  ask anms
     [let diversity_7 (count anms / count anms) ; Shannon's divesity index (H') in Morris et al. 2014
      set fauna_diversity -1 * diversity_7 * ln diversity_7 ]

   set ideal_biodiversity flora_diversity + fauna_diversity
end

to setup-NBS_alternatives

  if meander_restoration = true

      [ask patches with [is-natural? = true and
                         count (neighbors4 with [is-natural? = true and pzcor = -1]) > 3 and
                         pzcor = -1 and
                         pycor > 0]
         [set pcolor cyan
          set is-fluvial? true]

       ask patches with [is-urban? = true and
                         count (neighbors4 with [is-paved? = false and pzcor = -1]) > 3 and
                         pzcor = -1 and
                         pycor > 0 ]
         [set pcolor cyan
          set is-fluvial? true]]

  if retention_basins = true

      [ask patch -17 14 -1
         [ask patches in-radius 3 with [pzcor = -1 and is-paved? = false]
             [set pcolor cyan
              set is-fluvial? true]]

        ask patch -13 3 -1
                  [ask neighbors with [pzcor = -1]
             [set pcolor cyan
              set is-fluvial? true]]

        ask patch -22 26 -1
             [set pcolor cyan
              set is-fluvial? true]

        ask (patch-set patch -21 26 0 patch -20 26 0 patch -20 25 0 patch -20 27 0 patch -19 26 0 patch -19 25 0 patch -19 27 0 patch -18 25 0 patch -18 26 0)
              [ask patches with [pxcor = [pxcor] of myself and
                                 pycor = [pycor] of myself and
                                 pzcor = -1 ]
                      [set pcolor cyan
                       set is-fluvial? true]
          set pcolor 0
          set atmosphere? true]]

  if green_enhancement = true

      [ask patches with [pzcor = -1 and pycor > 0 and pcolor != 0]
        [ask patches in-radius 2 with [pzcor = 0 and pcolor != 0]
           [set is-natural? true
            set pcolor green
            sprout-nvgts nveg_ratio [set color green
                                     set shape "circle"
                                     set size (random-normal 0.20 0.03)
                                     set zcor [pzcor] of myself + size + 0.20
                                     forward 0.50]]] ]

  if urban_agriculture = true

      [ask n-of 50 patches with [is-agric? = true and pycor > 0]
        [sprout-agrls 3 [set color 57
                         set shape "circle"
                         set size (random-normal 0.10 0.03)
                         set zcor [pzcor] of myself + size + 0.4
                         forward random-float 0.5]] ]
end

;;; ASSESSMENT PROCEDURES ;;;  ASSESSMENT PROCEDURES ;;;  ASSESSMENT PROCEDURES ;;;

to seasons_change

  if ticks <= 3 ; normal spring
    [set season "spring"
      ask patches with [is-natural? = true]
        [sprout-ppls count patches with [is-fluvial? = true]
            [set color orange
             set shape "square"
            set size 0.10] ]]

  if ticks > 3 and ticks <= 6 ; hot and dry summer
    [set season "summer"
      ask patches with [is-natural? = true]
        [sprout-ppls count patches with [is-fluvial? = true]
            [set color orange
             set shape "square"
            set size 0.10] ]
      ask patches with [is-paved? = false and pcolor != 0]
        [set soil_temperature 305
         set s_h 0.20]
      ask patches with [is-paved? = true]
        [set soil_temperature 313
         set s_h 0.15] ]

  if ticks > 6 and ticks <= 9 ; normal autumn
    [set season "automn"
      ask n-of count patches with [is-fluvial? = true] ppls
        [die]
      ask patches with [pcolor != 0]
        [set soil_temperature soil_temperature - 6
         set s_h s_h + 0.10 ] ]

  if ticks > 9 and ticks <= 12 ; normal winter
    [set season "winter"
       ask n-of count patches with [is-fluvial? = true] ppls
        [die]
      ask patches with [pcolor != 0]
        [set soil_temperature 298
         set s_h 0.32 ]]
end

to assess-soil-water-retention

    ask patches with [ideal_vegetation_volume > 0]
       [set surface (((vegetation_volume - ideal_vegetation_volume)/ ideal_vegetation_volume) / 2 +
                     ((surface_roughness - ideal_roughness) / ideal_roughness) / 2 ) * 100

        set soil (((max_soil_humidity - s_h) / ideal_soil_humidity) / 3 +
                  ((s_h - min_wilting_point ) / min_wilting_point) / 3 +
                  ((soil_suction) / ideal_soil_suction) / 3 ) * 100 ]

  ask patches
    [set soil_water_retention (surface / 2) + (soil / 2)]
end

to assess-vegetation

  ask patches with [atmosphere? = false]
    [ifelse organic_content > 1 ;and soil_humidity > 0 min_wilting_point and soil_humidity < max_soil_humidity
       [set sfi (organic_content / 100) + (soil_humidity / min_wilting_point) + (max_soil_humidity / soil_humidity)] ;average soil pH at 6.5
       [set sfi 0]
     set ideal_sfi 21.785 + (32 / 15) + (60 / 32)] ;21.785 :mean [organic_content] of patches of the ground

     set veg_cover count (turtle-set nvgts fvgts uvgts) / count patches with [pzcor = 0]

  if ticks = 1
     [set ideal_veg count patches with [is-natural? ] * 3 / count patches with [pzcor = 0] ]
   if ideal_veg > 0 ;; set a standard ideal_veg for this type of city
     [set flora (veg_cover - ideal_veg) / ideal_veg] ;

   let sfi_perf (sfi - ideal_sfi / ideal_sfi)
   set vegetation flora + sfi_perf
end

to assess-biodiversity

  ask (turtles)
       [let diversity_1 (count nvgts with [size <= 0.30] / count turtles) ; Shannon's divesity index (H') in Morris et al. 2014
        let diversity_2 (count nvgts with [size > 0.30] / count turtles)
        let diversity_3 (count fvgts / count turtles)
        let diversity_4 (count uvgts with [size <= 0.70] / count turtles)
        let diversity_5 (count uvgts with [size > 0.70] / count turtles)

        set fl_d -1 * diversity_1 * ln diversity_1 + -1 * diversity_2 * ln diversity_2 +
                 -1 * diversity_3 * ln diversity_3 + -1 * diversity_4 * ln diversity_4 +
                 -1 * diversity_5 * ln diversity_5]

  set fn_d (fl_d * 0.80) + (mean [soil] of patches * 0.20)
  set biodiversity ((fl_d + fn_d) - ideal_biodiversity ) / ideal_biodiversity
end

to assess-community

 set community_index count ppls / count patches with [pcolor != 0]
 set community (community_index - initial_community_index)/ initial_community_index
end

to assess-air
  let vgts (turtle-set nvgts fvgts uvgts)

  set ideal_aqii count vgts * (2 + 1.8 + 3)

  ask patches with [atmosphere? = true]
      [set air_sample count patches with [atmosphere? = true and pzcor <= 5 and pycor >= 0 and pcolor = 0]]

  set cool_patches count patches with [atmosphere? = true and any? nvgts-here = true or any? uvgts-here = true or any? fvgts-here = true] * 8 * mean [size] of vgts

  ask patches with [atmosphere? = true]
        [set cooling (cool_patches / air_sample) * 1.5 * 100]

  ask vgts
    [set aqii mean [aqii_habit] of vgts + mean [aqii_canopy] of vgts + 3
     set air ((aqii - ideal_aqii) / ideal_aqii) + (cooling)]
end

to assess-ES
  let vgts (turtle-set nvgts fvgts uvgts)

  ifelse erosion_control = true
    [set erosion_control_value mean [soil_water_retention] of patches ]
    [set erosion_control_value 0]
  ifelse gas_regulation = true
    [set gas_regulation_value aqii]
    [set gas_regulation_value 0 ]
  ifelse microclimate_regulation = true
    [set microclimate_regulation_value mean [cooling] of patches ]
    [set microclimate_regulation_value 0]
  ifelse nutrient_cycling = true
    [set nutrient_cycling_value (sfi - ideal_sfi / ideal_sfi)] ;soil reftility perfomance
    [set nutrient_cycling_value 0]
  ifelse pollination = true
    [set pollination_value (cool_patches / count patches with [is-natural? = true and any? neighbors with [atmosphere? = true]]) ]
    [set pollination_value 0]
  ifelse refugia = true
    [set refugia_value 1 * (count anms / count patches with [is-natural? = true and any? neighbors with [atmosphere? = true]]) ]
    [set refugia_value 0]
  ifelse soil_formation = true
    [set soil_formation_value mean [soil] of patches]
    [set soil_formation_value 0]
  ifelse water_regulation = true
    [set water_regulation_value 0.10 * abs ((mean [soil_suction] of patches - mean [ideal_soil_suction] of patches) / mean [ideal_soil_suction] of patches) ]
    [set water_regulation_value 0]
  ifelse waste_treatment = true
    [set waste_treatment_value (-0.010 * count anms / count patches with [is-natural? = true and any? neighbors with [atmosphere? = true]]) + (-0.010 * count vgts * mean [size] of vgts)]
    [set waste_treatment_value 0]

  set regulating (erosion_control_value + gas_regulation_value + microclimate_regulation_value + nutrient_cycling_value + pollination_value + refugia_value + soil_formation_value + water_regulation_value + waste_treatment_value) / 9 ; average of all regulating services

  ifelse food_production = true
    [set food_production_value 0.1 * count agrls * mean [size] of agrls]
    [set food_production_value 0]
  ifelse genetic_resources = true
    [set genetic_resources_value (0.001 * count vgts) + (0.001 * count anms)]
    [set genetic_resources_value 0]
  ifelse raw_materials_value = true
    [set raw_materials_value 0.1 * count vgts]
    [set raw_materials_value 0]
  ifelse water_supply = true
    [set water_supply_value (- 0.010 * count patches with [is-natural? = true and any? neighbors with [atmosphere? = true]]) ]
    [set water_supply_value 0]

  set provisioning (food_production_value + genetic_resources_value + raw_materials_value + water_supply_value) / 4 ; average of all provisioning services

  ifelse cultural_use = true
    [set cultural_use_value 0.10 * usage_level * count ppls ]
    [set cultural_use_value 0]
  ifelse recreation = true
    [set recreation_value 0.10 * satisfaction_level * count ppls]
    [set recreation_value 0]

  set cultural (cultural_use_value + recreation_value) / 2 ; average of all cultural services
end

;;; NORMAL PROCEDURES OF NBS ;;; NORMAL PROCEDURES OF NBS;;;  NORMAL PROCEDURES OF NBS;;;

to retain_water

  ask patches with [pcolor != 0]
   [if any? patches with [s_h > ideal_soil_humidity]
     [ask patches with [is-natural? = true or is-fluvial? = true or is-urban? = true or is-agric? = true]
        [set s_h s_h * (1 - soil_suction)]

      ask patches with [is-paved? = true]
        [set s_h s_h * (1 - soil_suction / 2)]]]

       ask patches with [pcolor != 0]
     [if s_h > ideal_soil_humidity
        [set pcolor (s_h * 100) + 60]]

  ask patches with [is-paved? = false and pcolor != 0]
     [if not any? patches with [s_h > ideal_soil_humidity]
        [set s_h ideal_soil_humidity]]
end

to recover_flood_ecosystem

  ask patches with [pzcor = -1 and pycor > 0]
     [ask neighbors with [is-natural? = true]
         [sprout-uvgts (1 - (s_h - ideal_soil_humidity))  [set color green
                                                           set zcor [pzcor] of myself + size
                                                           set shape "circle"
                                                           set size (random-normal 0.719 0.09) ]
          sprout-anms 1  [set color yellow
                          set size random-float 0.5
                          setxyz random-xcor random-ycor -3]]


     ask neighbors with [is-urban? = true]
         [sprout-uvgts (1 - (s_h - ideal_soil_humidity))  [set color green
                                                           set zcor [pzcor] of myself + size
                                                           set shape "circle"
                                                           set size (random-normal 0.719 0.09) ]]

     ask neighbors with [is-fluvial? = true]
          [sprout-fvgts (1 - (s_h - ideal_soil_humidity)) [set color cyan
                                                           set shape "circle"
                                                           set size (random-normal 0.24 0.03)
                                                           set zcor [pzcor] of myself + size + 0.3
                                                           forward random-float 0.5]
           sprout-anms 1  [set color yellow
                           set size random-float 0.5
                           setxyz random-xcor random-ycor -3]]]

  if any? patches with [pzcor = -1 and pycor > 0 and s_h = ideal_soil_humidity]
        [create-ppls (count patches with [pzcor = -1 and pycor > 0 and s_h = ideal_soil_humidity]) [set color orange
                                                                                             forward 1]]
end

;;; DISRUPTIVE EVENTS ;;; DISRUPTIVE EVENTS ;;; DISRUPTIVE EVENTS ;;;

to toflood

 if flood = true and ticks = 6
  [ask patches with [pzcor = -1 and pycor > 0]
    [set s_h 1
     ask neighbors with [pzcor = 0 and pcolor != 0]
          [set s_h 0.60
           ask nvgts-here [die]
           ask fvgts-here [die]
           ask anms-here [die]
           ask ppls-here [die] ]]  ]

  if flood = true and ticks > 6
    [set flood false]
end
