NBSINFRA Cologne

globals
[
   meander_rec_rate ;variable to regulate the meander footprint and the NBS of meander reconstruction

   ;; soil water retention variables ;;
   soil_humidity
   soil_suction ; related to soil humidity

   ;; vegetation variables ;;
   ntree_num  ; number of patches with trees of naturally green areas
   nshrub_num ; number of patches with shrubs of naturally green areas
   nveg_ratio ; ratio of trees over shrubs of naturally green areas
   fshrub_num ; number of patches with vegetation of fluvial areas
   utree_num  ; number of patches with trees of urban green areas
   ushrub_num ; number of patches with shrubs of urban green areas
   uveg_ratio ; ratio of trees over shrubs of urban green areas

   flora ; IVI, composite index to monitor the diversity and density of flora species
   veg_cover ; ratio between vegetation elements (vgts) and total area (patches)
   ideal_veg ; intial IVI at tick 0, estimated at 79.33 for woody plants in urban green spaces by Muthulingam & Thangavel, 2012
   current_regeneration_rate ; the regeneration rate of every tick, as defined by soil humidity and fertility
   sfi ; soil fertility index calculated as: SFI= organic C% + pH adjusted from Panwar et al. 2011
   ideal_sfi ;  soil fertility index for min carbon content 5% and max soil acidity 6.0
   vegetation   ; composite index to monitor the condition of the flora and the soil fertility

   ;; biodiversity variables ;;
   flora_diversity ; Shannon's divesity index (H') -Σp*lnp (Morris et al. 2014) at the beginning of the simulation
   fl_d ; Shannon's divesity index (H') at every tick
   fauna_diversity ; correlated to flora_diversity and soil quality according to Qian 2007
   fn_d ; fauna diversity at every tick
   ideal_biodiversity ; ideal biodiversity value calculated at the begginging of the run
   biodiversity ; total biodiversity performance index assessed in every tick

   ;; economic variables ;;
   std_socioeconomic ; base case of socio-economic index at the setup of the run
   socioeconomic ; assessed socioeconomic index in every tick

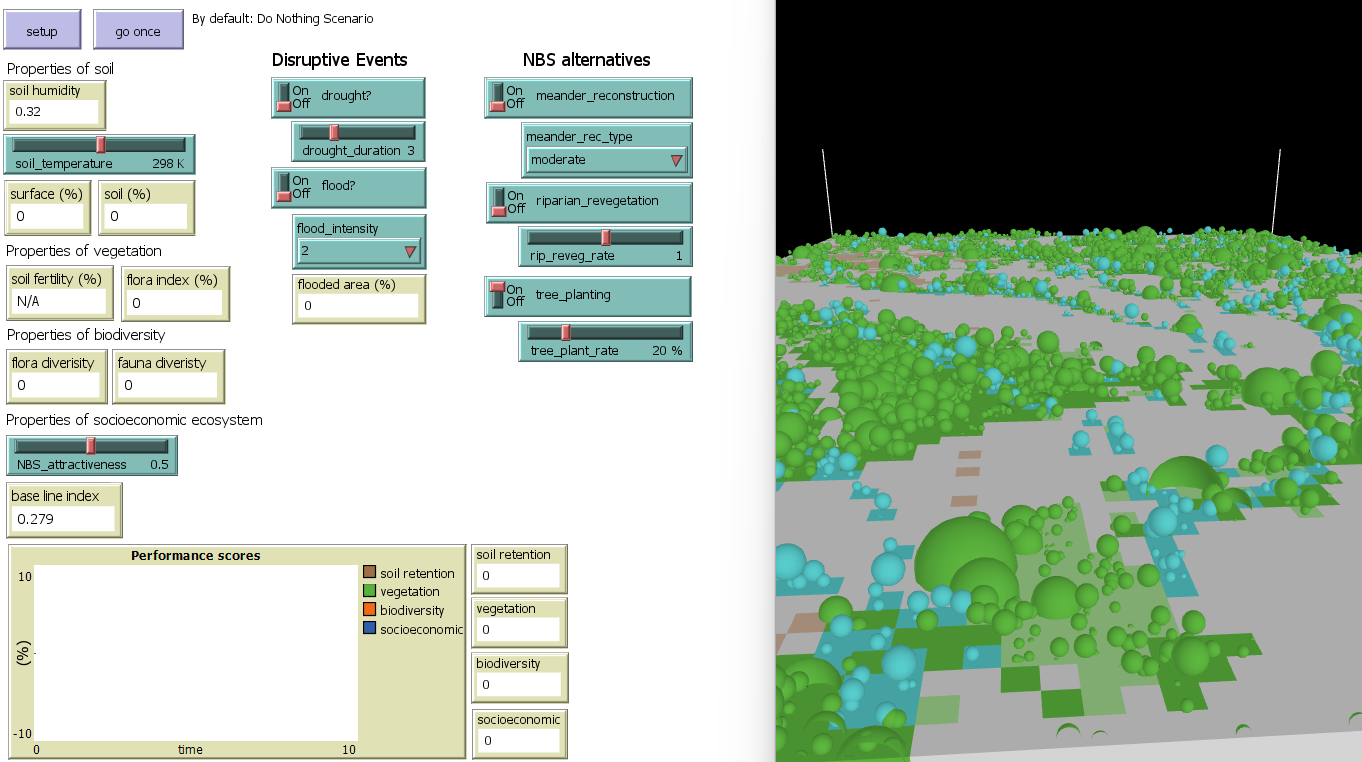

   ;; BUTTONS, SWITCHES AND SLIDERS ;;
   ; meander_reconstruction ; NBS alternative defined by end-user
      ; menader_rec_type ; [moderate, extensive] chooser (qualitative) to determine the extent of the meander reconstruction
   ; riparian_revegetation ; NBS alternative defined by end-user
      ; rip_reveg_rate ; [0,1,2] variable to define the intensity of riparian revegatation (intervention)
   ; tree_planting ; NBS alternative defined by end-user
      ; tree_plant_rate ; [10-30%] variable to define the intensity of tree planting (intervention)
   ; drought? ; switch to start the procedure of drought
      ; drought_duration ; user-defined varaible for the duration of the drought
   ; flood? ; switch to start the procedures of flood
      ; flood_intensity ; 0, 1, 2 and 3 defines the size of flooded area
]

breed [nvgts nvgt]
breed [fvgts fvgt]
breed [uvgts uvgt]
breed [anms anm]

patches-own
[
  is-natural?  ;whether a patch represents natural surface
  is-paved?    ;whether a patch represents paved surface
  is-agric?    ;whether a patch represents agricultural land
  atmosphere?  ;whether a patch represents atmospheric volume

  ; related to soil water retention
  surface      ; composite index of surface characterisitcs (LID BMP parameter)
               ; storage depth/berm height/barrel height, vegetation volume, surface roughness, surface slope
  soil         ; composite index of soil characterisitcs (LID BMP parameter)
               ; wilting point, humidity
  soil_water_retention ; index combining both the surfance and soil indices
  surface_roughness; 0.1 for soil and different vegetation roughness
  ideal_roughness; 0.1 for RG
  vegetation_volume ; average size of vegetation agents in radius 3 of the examined patch
  ideal_vegetation_volume ;5/100 for RG
  ideal_soil_humidity; 0.32 /32% for normal clay (Minnesota Stormwater Manual, 2022)
  s_h; soil humidity of patches
  max_soil_humidity; 0.45 for average normal clay
  wilting_point; 0.20 minimum amount of water in the soil that the plant requires not to wilt
  min_wilting_point; 0.15 for normal clay (Minnesota Stormwater Manual, 2022)
  ideal_soil_suction ; max soil suction for 32% relative humidity in 25oC

  ; related to vegetation
  organic_content; percnetage of organic material in soil, necessary for the vegetation

  ; related to air quality - cooling due to shading and evapotranspiration and reduction of the pollution levels
  cooling ; percentage of air patches with reduced temperature * mean temperature reduction
  cool_dif ; absolute mean temperature difference during daytime determined by Kim et al. 2024

  ; related to socioeconomic ecosystem
  s-e_pro ; index for the socioeconomic productivity per land use (agriculture, urban, green spaces)
  s-e
  attractiveness ; index for socio-economic attractiveness per land use
  att

]

turtles-own
[
  ; related to flora health condition
  plants_condition ; composite index comprising the flora population diversity and regeneration
                   ; density, frequency, abandance and importance value as well as the natural regeneration rate

]

to setup
  clear-all
  import-pcolors "Background and contours.png"
  setup-model
  setup-NBS_conditions
  setup-vegetation
  setup-soil-water-retention
  setup-biodiversity
  setup-socioeconomic
  reset-ticks
end

to go
  assess-soil-water-retention
  assess-vegetation
  assess-biodiversity
  assess_socioeconomic
  if drought?
     [drought]
  if flood? = true and drought? = false
    [flood
     retain_water]

  regenerate_trees

  tick

  if ticks >= 25
    [stop]
end

;;; SETUP PROCEDURES ;;;  SETUP PROCEDURES ;;;  SETUP PROCEDURES ;;;

to setup-model
  ;;; setup green areas ;;;
  ask patches with [pcolor >= 57.0 and pcolor < 58]
    [set pcolor green
     set is-natural? true]
  ask patches with [pcolor = green]
     [set organic_content 50
      set is-paved? false
      set atmosphere? false]

  ask patches with [pcolor >= 58 and pcolor <= 69]
    [set pcolor 57
     set is-natural? true]
  ask patches with [pcolor != 57 or pcolor != cyan]
    [if count neighbors4 with [pcolor = 57 or pcolor = cyan] >= 3
      [set pcolor 57
       set is-natural? true]]
  ask patches with [pcolor = 57]
      [set is-paved? false
       set atmosphere? false
       set organic_content 36]

 ;;; setup permeable productive land ;;;
 ask patches with [pcolor >= 39 and pcolor <= 40 and pycor > 10]
    [set pcolor 37
     set is-natural? true]
 ask patches with [pcolor != 37]
    [if count neighbors4 with [pcolor = 37] >= 3
      [set pcolor 37
       set is-natural? true]]
 ask patches with [pcolor = 37]
    [set is-paved? false
     set atmosphere? false
     set is-agric? true
     set organic_content 60]

  ;;; setup fluvial areas ;;;
  ask patches with [pcolor >= 75.0 and pcolor < 110]
    [set pcolor cyan
     set atmosphere? false
     set is-natural? true]
  ;;;;;; specific exceptions ;;;;;
  ask patches with [pxcor >= -44 and pxcor <= -39 and pycor = 30 and pzcor = 0]
    [set pcolor cyan
     set atmosphere? false
     set is-natural? true]

  ask (patch-set patch -51 24 0 patch -50 25 0 patch -49 26 0 patch -48 27 0 patch -47 28 0 patch -45 30 0
                 patch -53 22 0 patch -54 21 0 patch -55 20 0 patch -55 19 0 patch -57 17 0
                 patch -37 31 0 patch -36 32 0 patch -35 33 0 patch -34 32 0 patch -33 32 0 patch -32 31 0 patch -31 31 0)
      [set pcolor cyan
       set is-natural? true]

  ask patches with [pcolor = cyan]
    [set organic_content 60]

  ;;; setup built environment ;;;
  ask patches with [pzcor = 0 and is-natural? != true]
    [set pcolor 8
     set is-paved? true
     set is-natural? false
     set atmosphere? false
     set organic_content 5]

  ask patches with [pcolor = 8]
    [if count neighbors4 with [pcolor = green or pcolor = cyan] >= 3
      [set pcolor green
       set is-natural? true
       set organic_content 50]]

  ask patches with [pcolor = 0]
    [set is-natural? true
     set atmosphere? true]
end

to setup-vegetation

  ;;; Natural green ;;;
  set ntree_num 60
  set nshrub_num ntree_num
  set nveg_ratio 2
  let ntrees n-of ntree_num patches with [pcolor = green]
  ask ntrees
    [sprout-nvgts 1 [set color green
                     set zcor size
                     set shape "circle"
                     set size (random-normal 0.719 0.10) ]] ;updated standard deviation of forest zone's plants (Louma et al. 2017)
  ask ntrees
    [let nshrubs n-of nshrub_num other patches with [pcolor = green]
     ask nshrubs
         [sprout-nvgts nveg_ratio [set color green
                                   set shape "circle"
                                   set size (random-normal 0.24 0.40)
                                   set zcor size + 0.3
                                   forward 0.5]]]

  ;;; Fluvial green ;;;
  set fshrub_num 3
  let fshrubs patches with [pcolor = cyan]
  ask fshrubs
     [sprout-fvgts fshrub_num [set color cyan
                               set shape "circle"
                               set size (random-normal 0.24 0.40) ;updated standard deviation of riparian zone's plants (Arif et al. 2021)
                               set zcor size + 0.3
                               forward random-float 0.5]]

  ;;; Urban green ;;;
  set utree_num 50
  set ushrub_num utree_num
  set uveg_ratio 2
  let utrees n-of utree_num patches with [pcolor = 57]
  ask utrees
    [sprout-uvgts 1 [set color green
                     set zcor size
                     set shape "circle"
                     set size (random-normal 0.719 0.50) ]] ; sd (Luoma et al 2017)

 ask utrees
    [let ushrubs n-of ushrub_num other patches with [pcolor = 57]
     ask ushrubs
         [sprout-nvgts uveg_ratio [set color green
                                   set shape "circle"
                                   set size (random-normal 0.24 0.20)
                                   set zcor size + 0.3
                                   forward random-float 0.5]]]
 ;;; Tree Planting
    set_tree_planting


 ;;; Agricultural land ;;;
end

to setup-NBS_conditions

 ;; Meander Reconstruction
 if meander_reconstruction = true and meander_rec_type = "moderate"
  [set meander_rec_rate 2
   ask patches with [pcolor = 55 or pcolor = 57 ]
    [if count neighbors4 with [pcolor = cyan] >= meander_rec_rate
      [set pcolor cyan
       set is-natural? true]] ]

 if meander_reconstruction = true and meander_rec_type = "extensive"
  [set meander_rec_rate 2
   ask patches with [pcolor != 55 or pcolor != cyan ]
    [if count neighbors4 with [pcolor = cyan] >= meander_rec_rate
      [set pcolor cyan
       set is-natural? true]] ]

  ;;; Riparian Revegetation
  if riparian_revegetation = false
    [set fshrub_num 3]

  if riparian_revegetation = true and rip_reveg_rate = 0
    [ask patches with [pcolor = cyan]
       [sprout-fvgts 1 [forward 0.2]] ]
  if riparian_revegetation = true and rip_reveg_rate = 1
    [ask patches with [pcolor = cyan]
       [sprout-fvgts 3 [set size (random-normal 0.48 1.05)  ;standard deviation for riparian zone (Arif et al. 2021)                        set zcor size + 0.3
                        forward (random-normal 0.04 0.06)]]]
  if riparian_revegetation = true and rip_reveg_rate = 2
    [ask patches with [pcolor = cyan]
       [sprout-fvgts 6 [set size (random-normal 0.48 1.7) ;double standard deviation due to controlled species selection
                        set zcor size + 0.3
                        forward (random-normal 0.1 0.1)]] ]
  ask fvgts [set color cyan
             set shape "circle"
             set size (random-normal 0.40 0.80) ;standard deviation for riparian zone (Arif et al. 2021)
             set zcor size + 0.3
             forward random-float 0.5]
end

to set_tree_planting

  if tree_planting = true
      [let u_trees count uvgts with [size >= 0.5]
       ask n-of (u_trees * (tree_plant_rate / 100)) uvgts with [size < 0.7]
                   [set size (random-normal 0.36 1.20)]
      let n_trees count nvgts with [size >= 0.5]
       ask n-of (n_trees * (tree_plant_rate / 100)) nvgts with [size < 0.7]
                   [set size (random-normal 0.5 1.20)]]
end

to setup-soil-water-retention
ask patches with [atmosphere? = false]
  [set ideal_vegetation_volume 0.05
   set ideal_roughness 0.1
   set ideal_soil_humidity 0.32
   set s_h ideal_soil_humidity
   set soil_humidity mean [s_h] of patches with [pzcor = 0]
   set max_soil_humidity 0.40
   set min_wilting_point 0.15
   set ideal_soil_suction -0.00001 * ((8.314 * 298)/ 1 * 18.016) * ln(0.32)]

ifelse soil_humidity != 0
  [set soil_suction -0.00001 * ((8.314 * soil_temperature)/ 1 * 18.016) * ln(soil_humidity)]
  [set soil_suction -0.00001 * (8.314 * soil_temperature)/ 1 * 18.016 ]

 ask patches with [pzcor = 0]
    [ifelse any? turtles-here
      [set vegetation_volume mean [size] of turtles in-radius 1]
      [set vegetation_volume 0]]

 ask patches
     [ifelse vegetation_volume > 0.001
        [set surface_roughness vegetation_volume ]
        [set surface_roughness 0.10]  ]
end

to setup-biodiversity

   ask (turtles)
       [let diversity_1 (count nvgts with [size <= 0.30] / count nvgts) ; Shannon's divesity index (H') in Morris et al. 2014
        let diversity_2 (count nvgts with [size > 0.30] / count nvgts)
        let diversity_3 (count fvgts / count fvgts)
        let diversity_4 (count uvgts with [size <= 0.70] / count uvgts)
        let diversity_5 (count uvgts with [size > 0.70] / count uvgts)

        set flora_diversity -1 * diversity_1 * ln diversity_1 + -1 * diversity_2 * ln diversity_2 +
                            -1 * diversity_3 * ln diversity_3 + -1 * diversity_4 * ln diversity_4 +
                            -1 * diversity_5 * ln diversity_5]

   set fauna_diversity (flora_diversity * 0.80) + (2.43 * 0.20) ; 4.43 calculated mean soil fertility at the ideal beginning
   set ideal_biodiversity flora_diversity + fauna_diversity
end

to setup-socioeconomic

  ask patches with [is-agric? = true]
      [set s-e_pro (soil / 2) + 3 ; 3:equivalent of economic production
       set attractiveness NBS_attractiveness / 3]

  ask patches with [pcolor = green]
      [set s-e_pro (soil + ideal_biodiversity)
       set attractiveness NBS_attractiveness]

  ask patches with [pcolor = 57]
      [set s-e_pro (surface + soil + ideal_biodiversity) + 1 ;1:equivalent of economic production
       set attractiveness NBS_attractiveness * 2]

  ask patches with [pcolor = cyan]
      [set s-e_pro (surface + soil + ideal_biodiversity)
       set attractiveness NBS_attractiveness * 2]

  ask patches with [is-paved? = true]
      [set s-e_pro (surface + ideal_biodiversity) + 2 ;2:equivalent of economic production
       set attractiveness NBS_attractiveness]

  set std_socioeconomic mean [s-e_pro + attractiveness] of patches
end


;;; ASSESSMENT PROCEDURES ;;;  ASSESSMENT PROCEDURES ;;;  ASSESSMENT PROCEDURES ;;;

to assess-soil-water-retention

  ask patches with [ideal_vegetation_volume > 0]
       [set surface (((vegetation_volume - ideal_vegetation_volume)/ ideal_vegetation_volume) / 2 +
                     ((surface_roughness - ideal_roughness) / ideal_roughness) / 2 ) * 100

        set soil (((max_soil_humidity - s_h) / ideal_soil_humidity) / 3 +
                  ((s_h - min_wilting_point ) / min_wilting_point) / 3 +
                  ((soil_suction) / ideal_soil_suction) / 3 ) * 100 ]

  ask patches
    [set soil_water_retention (surface / 2) + (soil / 2)]
end

to assess-vegetation

  ask patches with [atmosphere? = false]
    [ifelse organic_content > 1 ;and soil_humidity > 0 min_wilting_point and soil_humidity < max_soil_humidity
       [set sfi (organic_content / 100) + (soil_humidity / min_wilting_point) + (max_soil_humidity / soil_humidity)] ;average soil pH at 6.5
       [set sfi 0]
     set ideal_sfi 21.785 + (60 / 30) + (45 / 30)] ;21.785 :mean [organic_content] of patches of the ground

     set veg_cover count (turtle-set nvgts fvgts uvgts) / count patches with [pzcor = 0]

  if ticks = 1
     [set ideal_veg count patches with [is-natural? ] * 3 / count patches with [pzcor = 0] ]
   if ideal_veg > 0 ;; set a standard ideal_veg for this type of city
     [set flora (veg_cover - ideal_veg) / ideal_veg] ;

   ;if sfi > 0 and soil_humidity > 0.20
   ;    [set current_regeneration_rate ((organic_content / 20) * regeneration_rate +  regeneration_rate)]

   let sfi_perf (sfi - ideal_sfi / ideal_sfi)
   set vegetation flora + sfi_perf
end

to assess-biodiversity

  ask (turtles)
       [let diversity_1 (count nvgts with [size <= 0.20] / count nvgts) ; Shannon's divesity index (H') in Morris et al. 2014
        let diversity_2 (count nvgts with [size > 0.20 and size <= 0.30] / count nvgts)
        let diversity_3 (count nvgts with [size > 0.30 and size <= 0.50] / count nvgts)
        let diversity_4 (count nvgts with [size > 0.50 and size <= 0.70] / count nvgts)
        let diversity_5 (count nvgts with [size > 0.70] / count nvgts)
        let diversity_6 (count fvgts with [size <= 0.30] / count fvgts)
        let diversity_7 (count fvgts with [size > 0.30] / count fvgts)
        let diversity_8 (count uvgts with [size <= 0.40] / count uvgts)
        let diversity_9 (count uvgts with [size > 0.40] / count uvgts)

        set fl_d -1 * diversity_1 * ln diversity_1 + -1 * diversity_2 * ln diversity_2 +
                 -1 * diversity_3 * ln diversity_3 + -1 * diversity_4 * ln diversity_4 +
                 -1 * diversity_5 * ln diversity_5 + -1 * diversity_6 * ln diversity_6 +
                 -1 * diversity_7 * ln diversity_7 + -1 * diversity_8 * ln diversity_8 +
                 -1 * diversity_9 * ln diversity_9]

  set fn_d (fl_d * 0.80) + (mean [soil] of patches * 0.20)
  set biodiversity ((fl_d + fn_d) - ideal_biodiversity ) / ideal_biodiversity
end

to assess_socioeconomic

  ask patches with [is-agric? = true]
      [set s-e (soil / 2) + 3 ; 3:equivalent of economic production
       set att NBS_attractiveness / 3]

  ask patches with [pcolor = green]
      [set s-e (soil / 2  + ideal_biodiversity)
       set att NBS_attractiveness]

  ask patches with [pcolor = 57]
      [set s-e (surface / 2 + soil / 2  + ideal_biodiversity) + 1 ;1:equivalent of economic production
       set att NBS_attractiveness * 2]

  ask patches with [pcolor = cyan]
      [set s-e (surface / 2 + soil / 2  + ideal_biodiversity)
       set att NBS_attractiveness * 2]

  ask patches with [is-paved? = true]
      [set s-e (surface / 2 + ideal_biodiversity) + 2 ;2:equivalent of economic production
       set att NBS_attractiveness]

  set socioeconomic (mean [s-e + att] of patches - std_socioeconomic) / std_socioeconomic
end

;;; NORMAL PROCEDURES ;;; NORMAL PROCEDURES ;;;  NORMAL PROCEDURES ;;;

to regenerate_trees

  ask n-of random 6 nvgts
       [die]

  ask n-of random 6 uvgts
       [die]

  ask n-of random 6 fvgts
       [die]

  ask n-of 10 patches with [pcolor = green and soil_humidity < max_soil_humidity and soil_humidity > min_wilting_point]
      [sprout-nvgts 1 * ((max_soil_humidity - soil_humidity) / ideal_soil_humidity)
        [set color green
         set shape "circle"
         set size (random-normal 0.24 0.03)
         set zcor size + 0.3]]

  ask n-of 10 patches with [pcolor = 57 and soil_humidity < max_soil_humidity and soil_humidity > min_wilting_point]
      [sprout-uvgts 1 * ((max_soil_humidity - soil_humidity) / ideal_soil_humidity)
        [set color green
         set shape "circle"
         set size (random-normal 0.24 0.03)
         set zcor size + 0.3]]

  ask n-of 10 patches with [pcolor = cyan and soil_humidity < max_soil_humidity and soil_humidity > min_wilting_point]
      [sprout-fvgts 1 * ((max_soil_humidity - soil_humidity) / ideal_soil_humidity)
         [set color cyan
          set shape "circle"
          set size (random-normal 0.24 0.03)
          set zcor size + 0.3]]
end

to retain_water

if flood? = false
  [ask patches with [pzcor = 0]
   [if any? patches with [s_h > ideal_soil_humidity]
     [ask patches with [is-natural? = true]
        [set s_h s_h * (1 - soil_suction)]

      ask patches with [is-paved? = true]
        [set s_h s_h * (1 - soil_suction / 2)]]]

       ask patches with [pzcor = 0]
     [if s_h > ideal_soil_humidity
        [set pcolor (s_h * 100) + 60]] ]

  ask patches with [pzcor = 0 and is-natural? = true]
     [if not any? patches with [s_h > ideal_soil_humidity]
        [set s_h ideal_soil_humidity]]
end

;;; DISRUPTIVE EVENTS ;;; DISRUPTIVE EVENTS ;;; DISRUPTIVE EVENTS ;;;

to drought

  set soil_temperature 303

  ask patches with [is-natural? = true and pzcor = 0]
    [set s_h ideal_soil_humidity * (1 - ticks * 10) ]

  ask patches with [is-paved? = true]
       [set s_h s_h * (1 - soil_suction / 2)]

  if ticks > drought_duration
    [set drought? false]
end

to flood


  if flood_intensity = "0"
    [ask (patch-set patch -1 8 0 patch -1 9 0 patch 0 8 0 patch 1 8 0 patch 0 9 0 patch 1 9 0 patch 0 10 0 patch 1 10 0
                    patch 27 -30 0 patch 27 -29 0 patch 28 -30 0 patch 28 -29 0
                    patch -61 14 0 patch -62 14 0 patch -61 13 0 patch -62 13 0 patch -63 13 0 patch -63 12 0 patch -64 12 0)
      [set s_h max_soil_humidity]

      ask (patch-set patch -1 8 1 patch -1 9 1 patch 0 8 1 patch 1 8 1 patch 0 9 1 patch 1 9 1 patch 0 10 1 patch 1 10 1
                     patch 27 -30 1 patch 27 -29 1 patch 28 -30 1 patch 28 -29 1
                     patch -61 14 1 patch -62 14 1 patch -61 13 1 patch -62 13 1 patch -63 13 1 patch -63 12 1 patch -64 12 1)
           with [any? turtles-here]
               [ask turtles-here
                 [die]] ]

  if flood_intensity = "1"
     [ask (patch-set  patch 0 8 0 patch 27 -29 0 patch -61 13 0 )
        [ask patches with [pzcor = 0] in-radius 3
           [set s_h max_soil_humidity ]]

      ask (patch-set  patch 0 8 1 patch 27 -29 1 patch -61 13 1 )
        [ask patches with [pzcor = 1 and any? turtles-here] in-radius 3
               [ask turtles-here
            [die]]] ]

  if flood_intensity = "2"
     [ask (patch-set  patch 0 8 0 patch 27 -29 0 patch -61 13 0 )
        [ask patches with [pzcor = 0] in-radius 6
           [set s_h max_soil_humidity ]]

      ask (patch-set  patch 0 8 1 patch 27 -29 1 patch -61 13 1 )
        [ask patches with [pzcor = 1 and any? turtles-here] in-radius 6
               [ask turtles-here
            [die]]] ]

  if flood_intensity = "3"
     [ask (patch-set  patch 0 8 0 patch 27 -29 0 patch -61 13 0 )
        [ask patches with [pzcor = 0] in-radius 9
           [set s_h max_soil_humidity ]]

      ask (patch-set  patch -20 -16 0 )
        [ask patches with [pzcor = 0] in-radius 3
           [set s_h max_soil_humidity ]]

      ask (patch-set  patch 0 8 1 patch 27 -29 1 patch -61 13 1 )
        [ask patches with [pzcor = 1 and any? turtles-here] in-radius 9
               [ask turtles-here
            [die]]] ]


  ask patches with [pzcor = 0]
     [if s_h > ideal_soil_humidity
        [set pcolor (s_h * 100) + 60]]

   if ticks > drought_duration + 2
        [set flood? false]

;     if ticks > 2
;        [set flood? false]
end
