Phone Calls on Trains

extensions [csv]
;extensions [csv profiler]
globals [ seats countdown
          radius

          ;; Outcome variables | CHECK: everything here should be group-level variables
          total_listeners total_callers total_readers total_unrelated ;; count total passengers of each group
          active_listeners active_callers active_readers active_unrelated ;; count active passengers of each group
          active_callers_silent_speech_device active_readers_headphone active_readers_quiet_zone
          user_mood_reader user_mood_caller user_mood_listener user_mood_unrelated
          active_user_mood_reader active_user_mood_caller active_user_mood_listener active_user_mood_unrelated

          avg_others_listeners avg_others_callers avg_others_readers avg_others_unrelated
          other_mood_readers other_mood_callers other_mood_listeners other_mood_unrelated

        ]

breed [ passengers passenger ]
passengers-own [ plan activity
                 considerateness
                 headphone silent_speech_device
                 positive_affect_limit negative_affect_limit
                 mood surrounding_mood
                 total_surrounding_passengers
               ]

to setup
  clear-all

  ;; make individual runs replicable
  random-seed new-seed

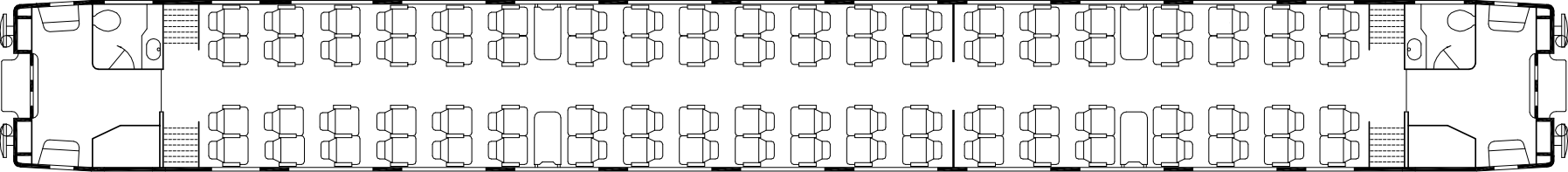

  ;; load background image
  if interactive [import-drawing "train.png"] ;; "interactive" is a performance switch for automated model runs. It turns off background drawing and color changes.

  ;; ENVIRONMENT VARIABLES
  ;; The distance between two seats (horizontally) is around 94 cm on the real train and around 64 pixels in the model. Thus, 1m on the real train
  ;; are 68 px in the model.
  ;; The critical distance measured in the pilot study is at 2.05m or 140 px in the simulation environment.
  set radius 140
  set countdown 3 ;; set countdown for stop condition (run stops if all agents perform their plan for this many rounds in a row)

  ;; IMPORT SEAT LAYOUT
  ;;
  ;; The seat coordinates are saved in the seats.csv file to increase readability
  ;;
  ;; Read seat coordinates:
  set seats []
  let raw_csv csv:from-file "seats.csv"
  ;; create a list of strings from the csv file (each string includes both coordinates, e.g., ["270 24" ... ])
  let raw_strings []
  foreach raw_csv [ row -> (foreach (remove "" row) [ entry -> (set raw_strings insert-item 0 raw_strings entry) ]) ]
  ;; split the strings to get a list of lists with the two coordinates as strings for each seat (e.g. [["270" "24"] ... ]
  let string_list []
  foreach raw_strings [ coordinates -> set string_list lput (split-string coordinates) string_list ]
  ;; convert the coordinates from string format and add a patch for each to the seats set.
  ;; The y coordinates are converted (y -> -y). The coordinates in the csv file follow the format in GIMP and need to be converted to the Netlogo format.
  foreach string_list [ coordinates -> set seats (patch-set seats patch (read-from-string (first coordinates)) (- read-from-string (last coordinates))) ]

  ;; CREATE PASSENGERS
  ;;
  ;; Create passengers and randomly assign some initial values. The plan, considerateness, headphone, and silent speech device
  ;; variables are randomized later, depending on the experimental condition.
  ;;
  ;; The individual affect limits for the activites are randomized and roughly based on Turner et al. (2008), assuming a normal
  ;; distribution. They are bounded by the PANAS scale limits when calculating the affect balance as:
  ;;
  ;; positive affect - negative affect = [-4, 4]
  ;;
  ;; Additionally, if positive_affect_limit happens to be negative or negative_affect_limit happens to be positive, they are
  ;; adjusted to their respective mean +/- two standard deviations.

  ask n-of population seats [
    sprout-passengers 1 [
      set shape "circle"
      set size 15
      set color black
      set plan one-of (list "read" "listen" "unrelated")
      set activity "none"
      if (plan = "unrelated") [ set activity "unrelated" ]
      set considerateness "considerate"
      set headphone false
      set silent_speech_device false

      set positive_affect_limit (random-normal 1.713 0.656)
      if (positive_affect_limit <= 0) [set positive_affect_limit 0.401] ;; mean positive_affect_limit - 2 standard deviations
      if (positive_affect_limit > 4) [set positive_affect_limit 3.025] ;; mean positive_affect_limit + 2 standard deviations

      set negative_affect_limit (random-normal -1.324 0.618)
      if (negative_affect_limit >= 0) [set negative_affect_limit -0.088] ;; mean negative_affect_limit + 2 standard deviations
      if (negative_affect_limit < -4) [set negative_affect_limit -2.56] ;; mean negative_affect_limit - 2 standard deviations

      set mood (random-normal 0 1) ;; set mood to random initial levels (normal curve, mean = 0, standard deviation = 1)
      if (mood < negative_affect_limit) [set mood negative_affect_limit]
      if (mood > positive_affect_limit) [set mood positive_affect_limit]
      set surrounding_mood 0
      set total_surrounding_passengers 0
    ]
  ]

  ;; randomly assign callers
  let abs_callers int (callers * population) ; (cut-off rounding, e.g., 1.7 -> 1)
  ask n-of abs_callers passengers [
    set plan "call"
  ]

  ;; randomly distribute headphones among all passengers
  let abs_headphones int (headphones * population)
  ask n-of abs_headphones passengers [
    set headphone true
  ]

  ;; randomly distribute silent speech devices among all passengers
  let abs_silent_speech_devices int (silent_speech_devices * population)
  ask n-of abs_silent_speech_devices passengers [
    set silent_speech_device true
  ]

  ;; randomly assign passengers to be considerate or inconsiderate
  let abs_inconsiderates int (inconsiderates * population)
  ask n-of abs_inconsiderates passengers [
    set considerateness "inconsiderate"
  ]

  ask passengers [
    sense-surroundings
  ]

  ;; basic output for headless mode to keep track of progress
  if (behaviorspace-run-number mod 500 = 0) [
    print ""
    print date-and-time
    type "run: " print behaviorspace-run-number
    type "population: " print population
    type "callers: " print callers
    type "headphones: " print headphones
    type "silent speech devices: " print silent_speech_devices
    type "Quiet Zone: " print QuietZone
    type "Inconsiderates: " print inconsiderates
    print ""
  ]

  check-setup
  reset-ticks
end

to go

  ;; STOP CONDITION
  ;;
  ;; Every passenger can perform their plan in their current seat. Because of
  ;; the asynchronous process, this has a countdown timer for a few rounds.
  if all-good? [
    type "Run " type behaviorspace-run-number print " finished."
    stop
  ]

  ;; PASSENGER BEHAVIOR
  ;;
  ;; Every passenger goes through the same set of subprocedures. Differences based
  ;; on the different plans are detailed in the subprocedures.

  ask passengers [

    ifelse disturbed? [ ;; Can the activity be performed here? Returns true if disturbed/impossible, false if not.
      set activity "none"
      ]
    [
      ifelse disturbing? [ ;; Does the activity disturb anyone? Returns true if it does, false if not.
        set activity "none"
      ]
      [ ;; If the activity neither disturbs nor is disturbed, perform it.
        set activity plan
      ]
    ]

    ifelse (activity = "none") [ ;; Slightly negative impact on mood for passengers who cannot perform their activity.
      get-frustrated
      if had-enough? [ give-up ]
    ]
    [ ;; Slightly positive impact on mood for passengers who can perform their activity.
      enjoy
    ]

    if interactive [set-color] ;; Updates the color of the agent to match the plan and activity.
    ]

  ;; DATA COLLECTION
  ;;
  ;; Group level data are prepared here before plotting

  data-collection

  tick
end

to-report disturbed?

  ;; Unrelated practices are never disturbed by definition
  if (plan = "unrelated") [report false]

  ;; Readers
  if (plan = "read")
    [
      ;; Readers are not disturbed if they wear headphones
      if (headphone) [report false]

      ;; Readers without headphones in a normal compartment are disturbed
      ;; if anyone in the radius (in the same compartment) is calling without a silent speech device
      if not in-quiet-zone?
      [
        if any? other passengers in-radius radius with [ activity = "call" and not silent_speech_device and not in-quiet-zone? ]
          [ report true ]
      ]

      ;; All other readers are undisturbed:
      ;; - not wearing headphones, but in quiet zone
      ;; - not wearing headphones but no nearby passenger in
      ;;   the same compartment is calling
      report false

  ]

  ;; Callers
  if (plan = "call")
    [
      ;; Callers are disturbed if in the quiet zone.
      if in-quiet-zone? [ report true ]

      ;; Callers are disturbed if they are in a normal compartment
      ;; but anyone nearby is calling without a silent speech device (and in the
      ;; same compartment)
      if any? other passengers in-radius radius with [ activity = "call" and not silent_speech_device and not in-quiet-zone? ]
          [ report true ]

      ;; All other callers are undisturbed:
      ;; - not in the quiet zone but no nearby passenger in
      ;;   the same compartment is calling
      report false

  ]

  ;; Listeners
  if (plan = "listen")
    [
      ;; No callers in the quiet zone, so listeners cannot
      ;; listen here.
      if in-quiet-zone? [ report true ]


      if any? other passengers in-radius radius with [ (activity = "call") and not silent_speech_device and not in-quiet-zone? ]
        [ report false ] ;; if they find one, they are NOT "disturbed"

      ;; If listeners finds no nearby caller within their radius,
      ;; who has no silent speech device, and if both are not in the quiet zone,
      ;; they are "disturbed"
      report true
  ]

  error "Error: The disturbed? procedure did not catch this passenger"
end

to-report disturbing?

  ;; This checks for (other people's) *activities*, not *plans*, assuming that
  ;; the passengers can only observe active performances.

  ;; Inconsiderate passengers do not check whether they disturb anyone.
  if (considerateness = "inconsiderate") [report false]

  ;; Listening, reading, and unrelated practices are never disturbing in the model.
  if (plan != "call") [report false]

  ;; Callers with silent_speech_devices do not disturb anyone.
  if (silent_speech_device) [report false]

  ;; Callers in quiet zone always disturb.
  if (in-quiet-zone?) [report true]

  ;; Callers disturb nearby readers and callers.
  ;; Note: This does not check for the other person's equipment (e.g., headphones)
  if any? other passengers in-radius radius with [ (activity = "read" or activity = "call") and not in-quiet-zone? ]
    [ report true ]


  ;; If passengers have:
  ;; 1. considerateness = considerate
  ;; 2. a plan to call
  ;; 3. no silent speech device
  ;; 4. are not in the quiet zone
  ;; 5. but no other nearby passenger is reading or calling
  ;; then they are not disturbing anyone.
  report false
end

to enjoy

  ;; Slightly increase mood if a passenger can perform their activity. Passengers
  ;; with an "unrelated" practice do not change their mood anymore.
  if (plan != "unrelated") [
    set mood min (list (mood + mood_change_rate) positive_affect_limit) ;; increase mood up to the individual maximum positive affect
  ]
end

to get-frustrated

  ;; Slightly decrease mood if a passenger cannot perform their activity. Passengers
  ;; with an "unrelated" practice do not change their mood anymore.
  if (plan != "unrelated") [
    set mood max (list (mood - mood_change_rate) negative_affect_limit) ;; reduce mood down to the individual maximum negative affect
  ]
end

;; Based on the pilot study, the chance for passengers to actually change their seats is quite low (modeled now at 0%).
;; The probability to stay put and wait for the disturbance to end is now set to 39%.
;; The probability to switch activities is now set to 61%.

to-report had-enough?

  ;; If
  if (plan != "unrelated") [

    ;; Passengers have not had enough if the mood is still positive
    if (mood > 0) [report false]
  ifelse (random 100 + 1 < 61)
    [ report true ] ;; 61% chance that a passenger has had enough (change activity)
    [ report false ] ;; 39% chance that a passenger has not had enough (do nothing)
  ]
end

to give-up
  let choose_alternative (random 75 + 1)
  if (choose_alternative <= 50) ;; 66% chance to switch to a different related plan (because this comprises two alternative activities)
    [
      change-plan
      stop
  ]
  if (choose_alternative > 50) ;; 33% chance to switch to an unrelated plan
    [
      set plan "unrelated"
      set activity "unrelated"
      stop
  ]
end

to change-plan
  let new-plan ""
  if (plan = "listen")
  [
    set new-plan one-of (list "read" "call")
  ]
  if (plan = "read")
  [
    set new-plan one-of (list "listen" "call")
  ]
  if (plan = "call")
  [
    set new-plan one-of (list "read" "listen")
  ]
  if (plan = "unrelated")
  [
    error "Error: Passenger with unrelated plan tried to change plan (change-plan)"
  ]
  set plan new-plan
end


;; This procedure is not used anymore but left here for reference.

to switch-seat
  ;; randomly select a seat, within or outside of a possible quiet zone and
  ;; independent of the passenger's current plan
  let selected-seat NOBODY
  let free-seats patch-set (seats with [not any? passengers in-radius 5])

  set selected-seat (one-of free-seats)

  if (selected-seat != NOBODY)
    [ move-to selected-seat ]
end

to data-collection

  ask passengers [
    sense-surroundings
  ]

  get-user-data

  get-other-data
end

to sense-surroundings
  let surrounding_passengers (other passengers in-radius radius)
  ifelse any? surrounding_passengers [
    set surrounding_mood (mean [mood] of surrounding_passengers)
    set total_surrounding_passengers (count surrounding_passengers)
  ]
  [
    set surrounding_mood 0
    set total_surrounding_passengers 0
  ]
end

to get-user-data

  ;; USER MOOD AND NUMBERS
  ;;
  ;; listeners
  let listener_set (passengers with [plan = "listen"])
  set total_listeners (count listener_set)
  ifelse (total_listeners > 0)
  [
    set user_mood_listener (mean [mood] of listener_set)
    carefully [set active_listeners (count listener_set with [activity = "listen"])]
      [set active_listeners 0]
    carefully [set active_user_mood_listener (mean [mood] of listener_set with [activity = "listen"])]
      [set active_user_mood_listener 0]
  ]
  [
    set user_mood_listener 0
    set active_listeners 0
    set active_user_mood_listener 0
  ]

  ;; callers
  let caller_set (passengers with [plan = "call"])
  set total_callers (count caller_set)
  ifelse (total_callers > 0)
  [
    set user_mood_caller (mean [mood] of caller_set)
    carefully [set active_callers (count caller_set with [activity = "call"])]
      [set active_callers 0]
    carefully [set active_callers_silent_speech_device (count caller_set with [activity = "call" and silent_speech_device])]
      [set active_callers_silent_speech_device 0]
    carefully [set active_user_mood_caller (mean [mood] of caller_set with [activity = "call"])]
      [set active_user_mood_caller 0]
  ]
  [
    set user_mood_caller 0
    set active_callers 0
    set active_callers_silent_speech_device 0
    set active_user_mood_caller 0
  ]

  ;; readers
  let reader_set (passengers with [plan = "read"])
  set total_readers (count reader_set)
  ifelse (total_readers > 0)
  [
    set user_mood_reader (mean [mood] of reader_set)
    carefully [set active_readers (count reader_set with [activity = "read"])]
      [set active_readers 0]
    carefully [set active_readers_headphone (count reader_set with [activity = "read" and headphone])]
      [set active_readers_headphone 0]
    carefully [set active_readers_quiet_zone (count reader_set with [activity = "read" and in-quiet-zone?])]
      [set active_readers_quiet_zone 0]
    carefully [set active_user_mood_reader (mean [mood] of reader_set with [activity = "read"])]
      [set active_user_mood_reader 0]
  ]
  [
    set user_mood_reader 0
    set active_readers 0
    set active_readers_headphone 0
    set active_readers_quiet_zone 0
    set active_user_mood_reader 0
  ]

  ;; unrelated
  let unrelated_set (passengers with [plan = "unrelated"])
  set total_unrelated (count unrelated_set)
  ifelse (total_unrelated > 0)
  [
    set user_mood_unrelated (mean [mood] of unrelated_set)
    carefully [set active_unrelated (count unrelated_set with [activity = "unrelated"])]
      [set active_unrelated 0]
    carefully [set active_user_mood_unrelated (mean [mood] of unrelated_set with [activity = "unrelated"])]
      [set active_user_mood_unrelated 0]
  ]
  [
    set user_mood_unrelated 0
    set active_unrelated 0
    set active_user_mood_unrelated 0
  ]
end

to get-other-data

  ;; OTHER MOOD AND NUMBERS (in surroundings)
  ;;
  ;; This procedure aggregates the data about surrounding passengers on a group level

  ;; listeners
  ifelse active_listeners > 0
  [
    let active_listener_set passengers with [activity = "listen"]
    set avg_others_listeners (mean [total_surrounding_passengers] of active_listener_set)
    set other_mood_listeners (mean [surrounding_mood] of active_listener_set)
  ]
  [
    set avg_others_listeners 0
    set other_mood_listeners 0
  ]

  ;; callers
  ifelse active_callers > 0
  [
    let active_caller_set passengers with [activity = "call"]
    set avg_others_callers (mean [total_surrounding_passengers] of active_caller_set)
    set other_mood_callers (mean [surrounding_mood] of active_caller_set)
  ]
  [
    set avg_others_callers 0
    set other_mood_callers 0
  ]

  ;; readers
  ifelse active_readers > 0
  [
    let active_reader_set passengers with [activity = "read"]
    set avg_others_readers (mean [total_surrounding_passengers] of active_reader_set)
    set other_mood_readers (mean [surrounding_mood] of active_reader_set)
  ]
  [
    set avg_others_readers 0
    set other_mood_readers 0
  ]

  ;; unrelated
  ifelse active_unrelated > 0
  [
    let active_unrelated_set passengers with [activity = "unrelated"]
    set avg_others_unrelated (mean [total_surrounding_passengers] of active_unrelated_set)
    set other_mood_unrelated (mean [surrounding_mood] of active_unrelated_set)
  ]
  [
    set avg_others_unrelated 0
    set other_mood_unrelated 0
  ]
end

to-report in-quiet-zone?
  ifelse (QuietZone and xcor > 1090)
    [ report true ]
    [ report false ]
end

to-report all-good?
  if (countdown = 0) [report true]
  ifelse (any? passengers with [activity != plan])
  [
    set countdown 3
    report false
  ]
  [
    set countdown countdown - 1
    report false
  ]
end

to set-color

  ;; readers are violet
  ;; active readers: #762a83 (118,42,131 -> 113.9)
  ;; inactive readers: #c5b2d7 (197,178,215 -> 117.8)
  if (plan = "read") [
    set shape "square"
    ifelse (activity = "read") ; violet
      [ set color 113.9 ]
      [ set color 117.8 ]
  ]

  ;; callers are orange
  ;; active callers: #f1a340 (241,163,64 -> 26.5)
  ;; inactive callers: #fac9ab ()250,201,171 -> 28.2)
  if (plan = "call") [
    set shape "circle"
    ifelse (activity = "call") ; orange
      [ set color 26.5 ]
      [ set color 28.2 ]
  ]

  ;; listeners are green
  ;; active listeners: #1b7837 (27,120,55 -> 63)
  ;; inactive listeners: #98ce86 (152,206,134 -> 56.9)
  if (plan = "listen") [
    set shape "triangle"
    ifelse (activity = "listen") ; green
      [ set color 63 ]
      [ set color 56.9 ]
  ]

  ;; unrelated are black
  if (plan = "none" or plan = "unrelated") [
    set shape "pentagon"
    set color 0
  ]
end

to-report split-string [a]
  let len (length a)
  let break (position " " a)
  report list (substring a 0 break) (substring a (break + 1) len)
end

;; Validation checks

to check-setup

  ;; Check Rounding Bugs

  ;; Are the population counts correct?
  if (count passengers != population) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers) type " passengers, although there should be " print population
  ]

  ;; Are the caller counts correct?
  if (count passengers with [plan = "call"] != int (population * callers)) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [plan = "call"]) type " callers, although there should be " print (population * callers)
  ]
  ;; Are the headphone counts correct?
  if (count passengers with [headphone = true] != int (population * headphones)) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [headphone = true]) type " passengers with headphones, although there should be " print int (population * headphones)
  ]
  ;; Are the silent speech device counts correct?
  if (count passengers with [silent_speech_device = true] != int (population * silent_speech_devices)) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [silent_speech_device = true]) type " passengers with silent speech devices, although there should be " print int (population * silent_speech_devices)
  ]
  ;; Are the social norm counts correct?
  if (count passengers with [considerateness = "inconsiderate"] != int (population * inconsiderates)) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [considerateness = "inconsiderate"]) type " inconsiderate passengers , although there should be " print int (population * inconsiderates)
  ]

  ;; Validate positive affect limits
  if (count passengers with [positive_affect_limit <= 0 or positive_affect_limit > 4] > 0) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [positive_affect_limit <= 0 or positive_affect_limit > 4]) print " passengers with a positive affect limit outside the allowed range of (0, 4]."
  ]

  ;; Validate negative affect limits
  if (count passengers with [negative_affect_limit >= 0 or negative_affect_limit < -4] > 0) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [negative_affect_limit >= 0 or negative_affect_limit < -4]) print " passengers with a negative affect limit outside the allowed range of [-4, 0)."
  ]

  ;; Validate that mood is in PANAS range
  if (count passengers with [mood < -4 or mood > 4] > 0) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [mood < -4 or mood > 4]) print " passengers with a mood outside the PANAS range of [-4, 4]."
  ]

  ;; Validate that mood is in individual limits
  if (count passengers with [mood < negative_affect_limit or mood > positive_affect_limit] > 0) [
    type "[WARNING] Run: " type behaviorspace-run-number type " There are " type (count passengers with [mood < negative_affect_limit or mood > positive_affect_limit]) print " passengers with a mood outside their individual range."
  ]
end
