Deep Neural Networks and Dropout

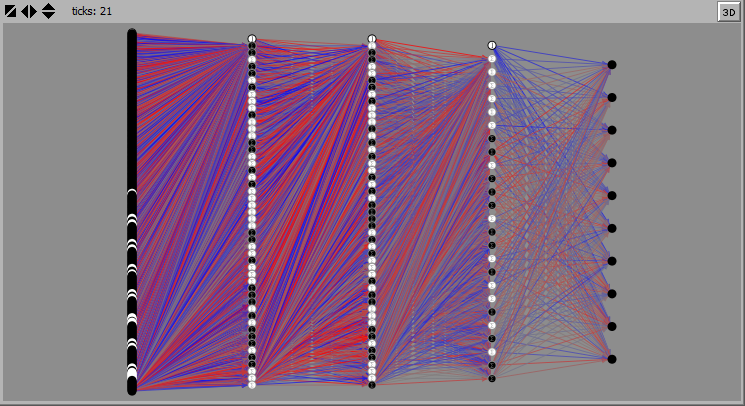

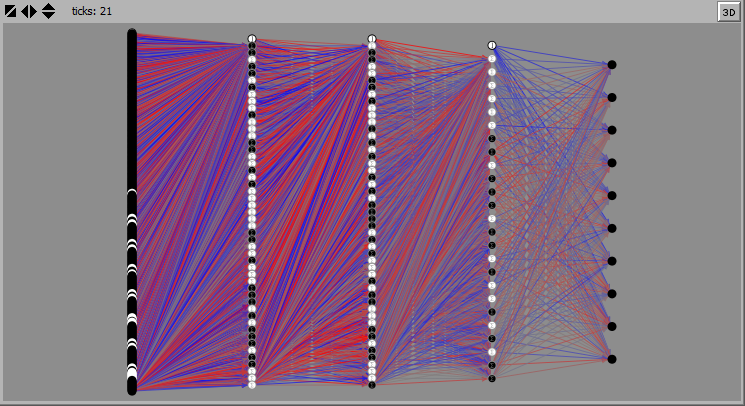

extensions [csv]

links-own [
  weight         ;; Weight given to end1 activation by end2
  inlayer        ;; Layer index of end1
]

breed [bias-nodes bias-node]
breed [input-nodes input-node]
breed [output-nodes output-node]
breed [hidden-nodes hidden-node]

turtles-own [
  activation     ;; Determines the nodes output
  err            ;; Used by backpropagation to feed error backwards
  layer          ;; Layer of network node is contained in. Used for agentset manipulation.
  estvar         ;; Estimated variance of error signal
  learncoeff     ;; Individual learning coefficient
  dropped?       ;; Boolean true if node currently dropped
]

globals [
  epoch-error    ;; Measurement of how many training examples the network got wrong in the epoch
  input-size     ;; Size of inputs
  hiddensizes    ;; Vector of layer sizes, determines net topology
  output-size    ;; Size of outputs
  traindata      ;; Training data
  testdata       ;; Testing data
]

;;;
;;; LOAD FILES
;;;

to load-files
  file-close-all
  file-open "mnist_train.csv"
  set traindata (list)
  repeat 20000 [
    set traindata lput (csv:from-row file-read-line) traindata
  ]
  file-close
  set testdata csv:from-file "mnist_test.csv"
end

;;;
;;; SETUP PROCEDURES
;;;

;; Set patches, shapes, and files (invariant under node change)

to setup
  clear-all
  ask patches [ set pcolor gray ]
  set-default-shape bias-nodes "bias-node"
  set-default-shape input-nodes "circle"
  set-default-shape output-nodes "circle"
  set-default-shape hidden-nodes "output-node"
  set-default-shape links "small-arrow-shape"
  load-files
end

;; Set up nodes and links, initialize values, and propagate so
;; that activations make sense

to init-net
  clear-links
  clear-turtles
  clear-plot
  setup-nodes
  setup-links
  recolor
  set-learncoeffs
  propagate
  reset-ticks
end

;; Create, initialize, and position the nodes in the network

to setup-nodes
  set input-size 400
  set hiddensizes read-from-string hidden-sizes-string
  set output-size 10
  let l-index 0
  let index 0

  create-bias-nodes 1 [
     setxy nodex l-index nodey l-index index (input-size + 1)
     set activation 1
     set layer l-index
     set dropped? false
  ]

  set index 1

  repeat input-size [
    create-input-nodes 1 [
      setxy nodex l-index nodey l-index index (input-size + 1)
      set activation ((random 2) * 2) - 1
      set layer l-index
      set dropped? false
    ]
    set index index + 1
  ]

  set l-index 1
  set index 0

  foreach hiddensizes [

    create-bias-nodes 1 [
       setxy nodex l-index nodey l-index index (? + 1)
       set activation 1
       set layer l-index
       set dropped? false
    ]

    set index 1

    repeat ? [
     create-hidden-nodes 1 [
       setxy nodex l-index nodey l-index index (? + 1)
       set activation ((random 2) * 2) - 1
       set layer l-index
       set dropped? false
     ]
     set index index + 1
    ]

    set l-index l-index + 1
    set index 0
  ]

  repeat output-size [
    create-output-nodes 1 [
      setxy nodex l-index nodey l-index index output-size
      set activation ((random 2) * 2) - 1
      set layer l-index
      set dropped? false
    ]
    set index index + 1
  ]
  ask turtles [set size 0.5]
end

;; Create and initialize links between nodes in the network

to setup-links
  let l-index 0
  repeat (length hiddensizes) [
   connect-all (turtles with [layer = l-index]) (hidden-nodes with [layer = (l-index + 1)])
   set l-index l-index + 1
  ]
  connect-all (turtles with [layer = l-index]) (output-nodes with [layer = (l-index + 1)])
end

;; Completely connect nodes1 to nodes2 with links

to connect-all [nodes1 nodes2]
  let r 1 / (sqrt (count nodes1))
  ask nodes1 [
    create-links-to nodes2 [
      set weight random-float (2 * r) - r
      set inlayer [layer] of one-of nodes1
    ]
  ]
end

;; Adjust color of nodes and edges according to values

to recolor
  ask turtles [
    set color item (step activation) [black white]
  ]
  let l-index 0
  let maxw 0
  repeat (length hiddensizes) + 1 [
   set maxw max [abs weight] of links with [inlayer = l-index]
   ask links with [inlayer = l-index] [
     let wquotient (weight / maxw)
     let colorstr (wquotient * 127)
     let colorvec (list (colorstr + 127) (127 - (abs colorstr)) (127 - colorstr) 196)
     set color colorvec
   ]
   set l-index l-index + 1
  ]
  ask turtles [
    if dropped? [set color [127 127 127]]
  ]
  ask links [
    if ([dropped?] of end1) or ([dropped?] of end2) [set color [127 127 127 196]]
  ]
end

;; Set the local learning rate coefficients for the nodes

to set-learncoeffs
  let l-index ((length hiddensizes) + 1)
  let v (1 / (item (l-index - 2) hiddensizes))
  let lc (1 / ((item (l-index - 2) hiddensizes) * sqrt v))

  ask output-nodes [
    set estvar v
    set learncoeff lc
  ]

  set l-index (l-index - 1)

  repeat (length hiddensizes) - 1 [
    set v (((count hidden-nodes with [layer = (l-index - 1)]) * v) / (item (l-index - 2) hiddensizes))
    set lc (1 / ((item (l-index - 2) hiddensizes) * sqrt v))

    ask hidden-nodes with [layer = l-index] [
      set estvar v
      set learncoeff lc
    ]

    set l-index (l-index - 1)
  ]

  set v (((count input-nodes) * v) / (count input-nodes))
  set lc (1 / ((count input-nodes) * (sqrt v)))

  ask hidden-nodes with [layer = l-index] [
    set estvar v
    set learncoeff lc
  ]
end


;;;
;;; VISUAL LAYOUT FUNCTIONS
;;;

;; Find the appropriate x coordinate for this layer

to-report nodex [l-index]
  report min-pxcor + (((l-index + 1) * (world-width - 1)) / (length hiddensizes + 3))
end

;; Find the appropriate y cooridinate for this node

to-report nodey [l-index index in-layer]
  report max-pycor - (((index + 1) * (world-height - 1)) / (in-layer + 1))
end

;;;
;;; TRAINING PROCEDURES
;;;

to train
  set epoch-error 0
  let currentdatum (one-of traindata)
  let sortin sort input-nodes
  let index 0
  let target n-values 10 [ifelse-value (? = (item 0 currentdatum)) [1][-1]]

  repeat examples-per-epoch [
    if dropout? [
      ask hidden-nodes [if (random 1000) < dropout-rate [set dropped? true]]
    ]
    repeat (length sortin) [
      ask (item index sortin) [set activation ((item (index + 1) currentdatum) / 127.5) - 1]
      set index index + 1
    ]
    propagate
    back-propagate  target
    set index 0
    set currentdatum (one-of traindata)
    set target n-values 10 [ifelse-value (? = (item 0 currentdatum)) [1][-1]]
    ask hidden-nodes [set dropped? false]
  ]
  set epoch-error epoch-error / examples-per-epoch
  tick
end

;;;
;;; PROPAGATION PROCEDURES
;;;

;; carry out one calculation from beginning to end

to propagate
  let l-index 1
  repeat length hiddensizes [
    ask hidden-nodes with [layer = l-index and not dropped?] [ set activation new-activation ]
    set l-index l-index + 1
  ]
  ask output-nodes [set activation new-activation]
  recolor
end

;; Determine the activation of a node based on the activation of its input nodes

to-report new-activation  ;; node procedure
  report tanh sum [[activation] of end1 * weight] of my-in-links with [not [dropped?] of end1]
end

;; changes weights to correct for errors

to back-propagate [target]
  let example-error 0
  let sortout sort output-nodes
  let l-index (length hiddensizes) + 1
  let index 0

  repeat (count output-nodes) [
    ask (item index sortout) [
      set err (item index target) - activation
      set example-error example-error + (err ^ 2)
    ]
    set index index + 1
  ]

  set example-error .5 * example-error
  set l-index l-index - 1

  repeat length hiddensizes [
    ask hidden-nodes with [layer = l-index and not dropped?] [
      let sumerror sum [weight * ([err] of end2)] of my-out-links
      set err (1 - (activation ^ 2)) * sumerror
    ]
    set l-index l-index + 1
  ]

  ask links with [not [dropped?] of end1 and not [dropped?] of end2] [
    let change ([err * learncoeff * learning-rate] of end2)*([activation] of end1)
    set weight weight + change
  ]

  set epoch-error epoch-error + example-error
end

;;;
;;; MISC PROCEDURES
;;;

;; Calculates the tanh function

to-report tanh [input]
  let exp2x e ^ (2 * input)
  report (exp2x - 1) / (exp2x + 1)
end

;; computes the step function given an input value and the weight on the link

to-report step [input]
  report ifelse-value (input > 0) [1][0]
end


; Copyright 2006 Uri Wilensky.
; See Info tab for full copyright and license.
